Standard Features

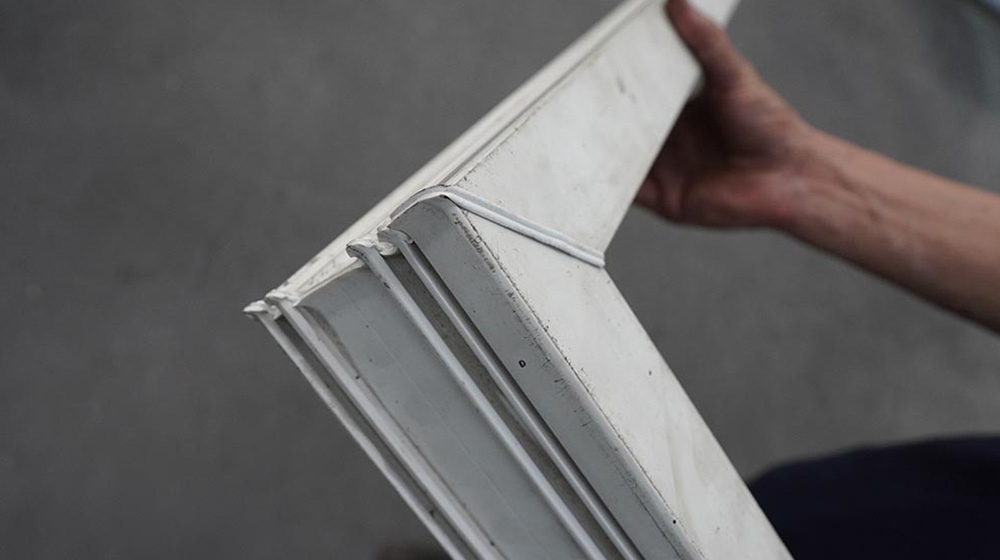

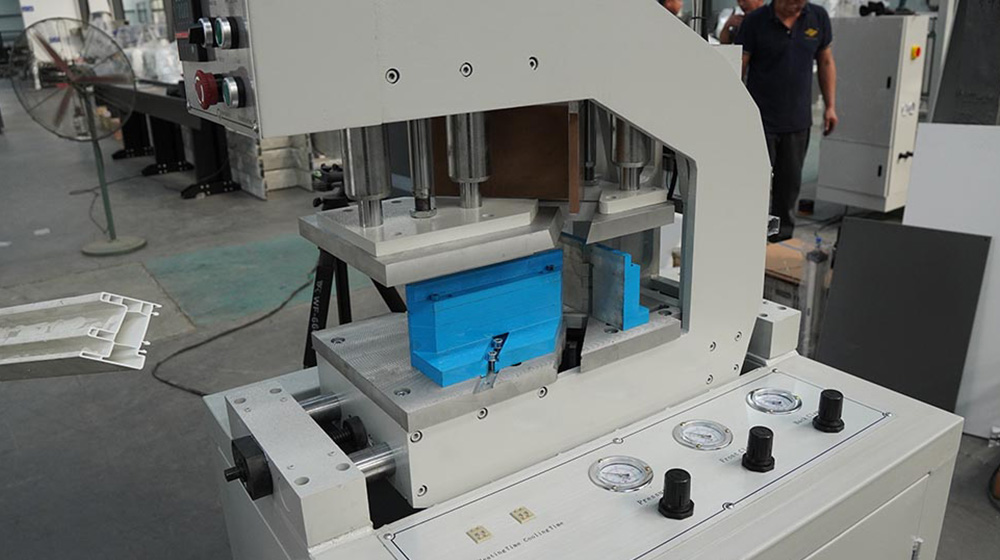

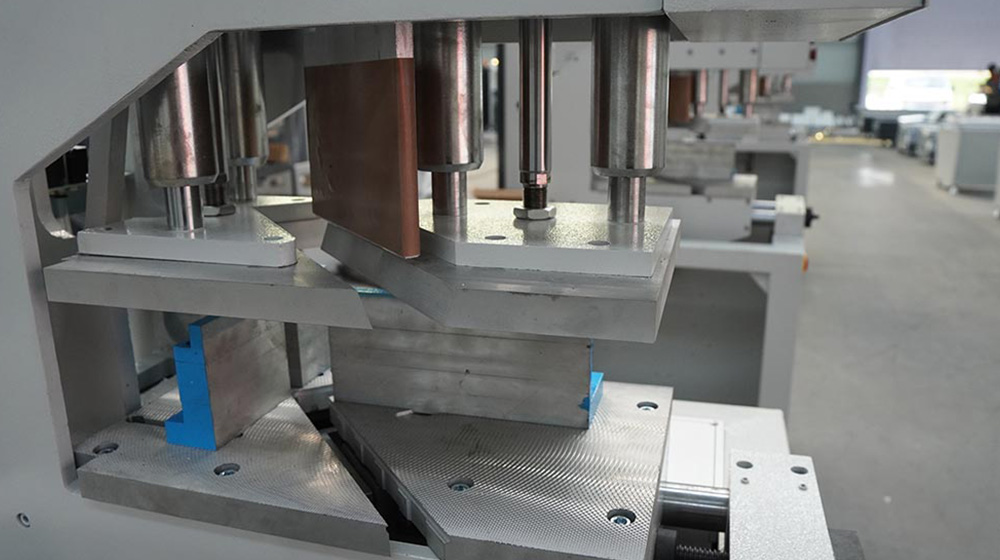

- V-shaped welding plate can achieve 90 degree welding, and can also realize V-shaped welding of mullions.
- 3mm welding seam restriction.
- Automated welding process makes operation simple.

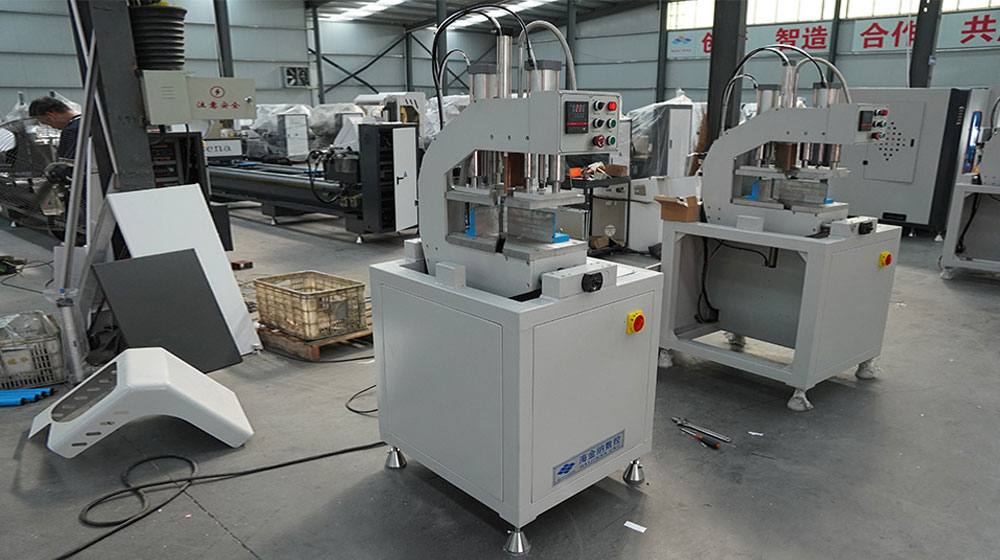

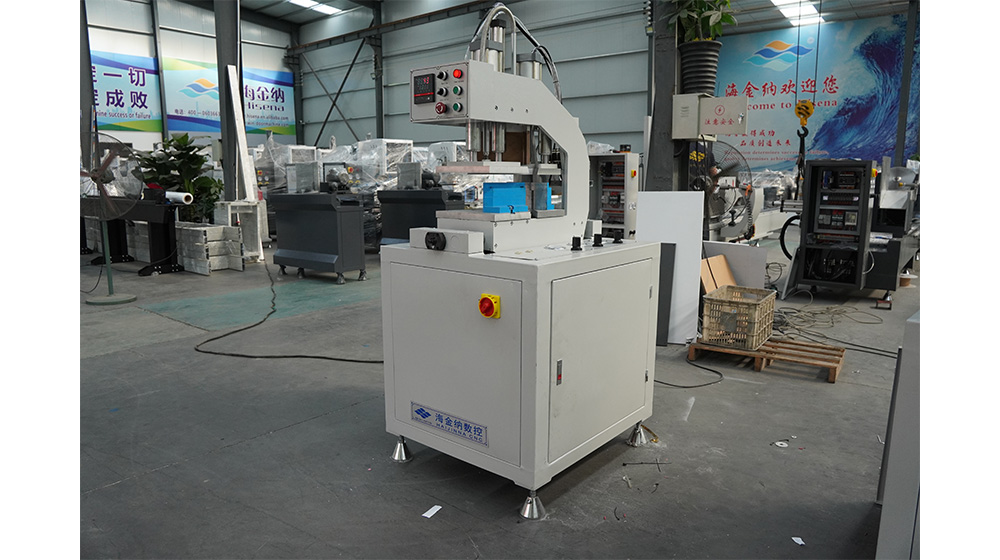

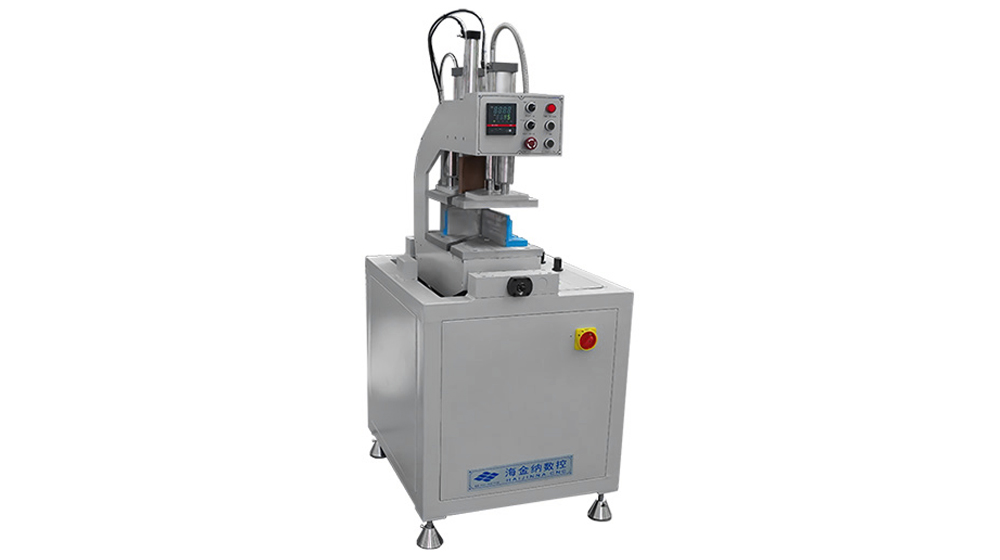

- The machine is small in size and has only one welding unit, which is easy to transport and has low investment cost.
Technical Parameters
| Model | HJ1-150 |
| Power supply | AC 220v/50hz |
| Total Power | 1.1kw |
| Air pressure | 0.4-0.6Mpa |
| Air consumption | 50L /min |
| Welding material height | 20-150mm |
| Welding material width | ≤120mm |
| Welding mullion width | ≤110mm |
| Welding Temperature | 0~399℃ |
| Overall dimensions | 950×800×1700mm |
| Packing dimensions | 1020×850×1900mm |
| Weight | 300Kg |
Accessories
| Machine body | 1mm thick steel outside
2mm thick steel tube for frame |
| Electric components | Schneider |
| Air cylinder | Ø40mm solid piston |
| Work table | 20mm thick solid steel |
| Welding plate | 180mm high |
| Temperature controller | WINPARK |
| Support | Aluminum |
| Buttons | Siemens |
| Solenoid valve | AUSHINE |
| PLC | TDL/DELTA DVP-24EC |
