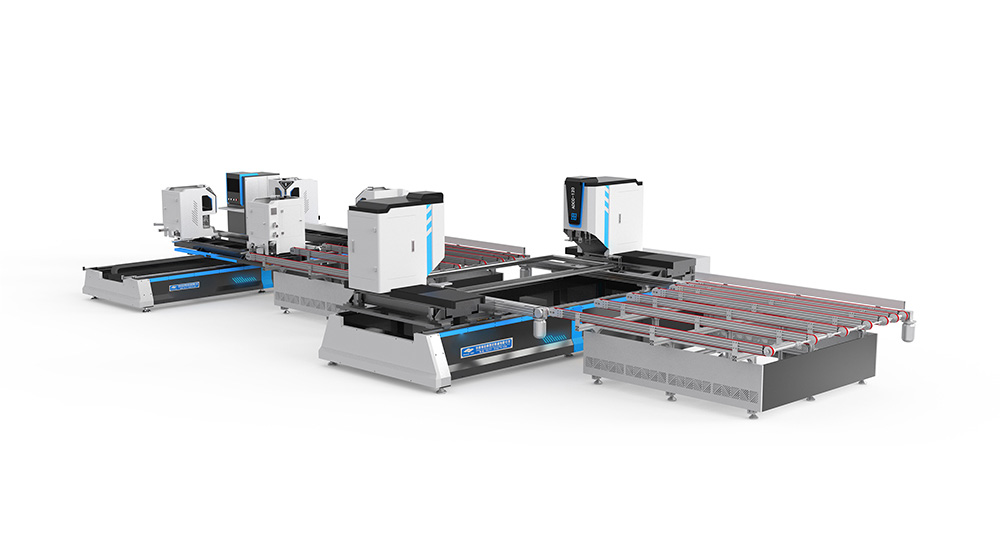

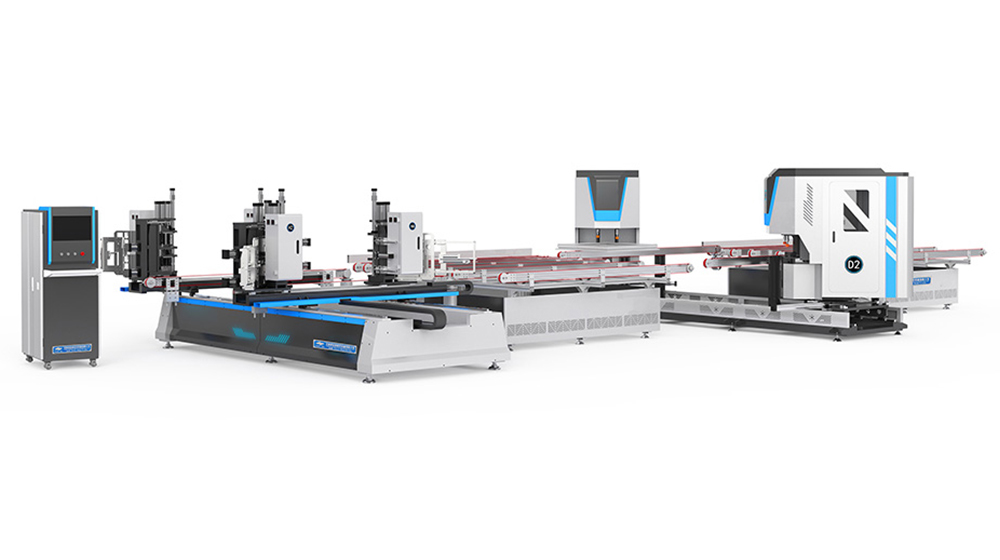

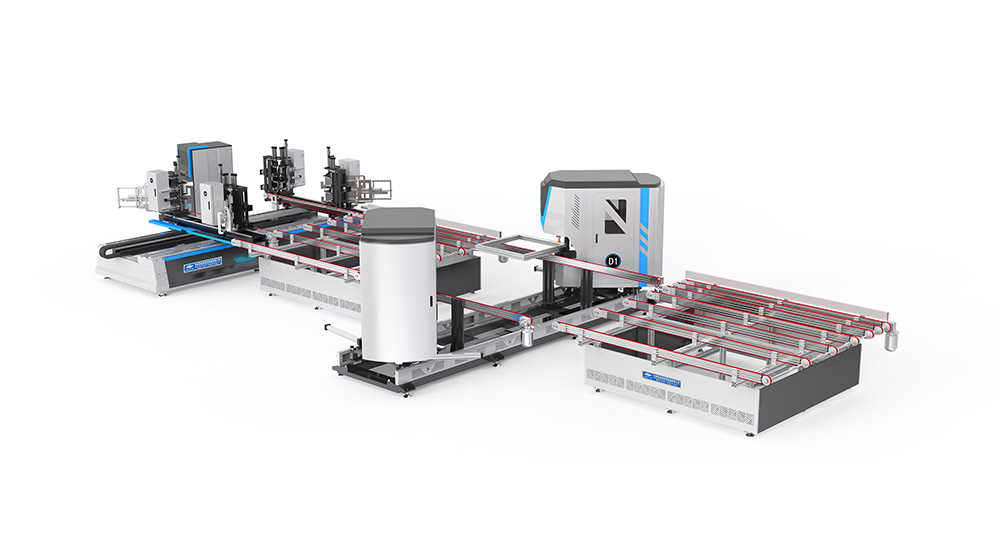

Home> PRODCUTS > UPVC Window Machine > Welding And Corner Cleaning Production Line > HQ-D Horizontal welding and corner cleaning line
sales@hisenacnc.com
0086 0531 83879788
Standard Features
- Four double-layer welding units can weld two rectangular window frames at the same time, with two corner cleaning units, high production efficiency, and only two people are required to operate, saving labor costs and labor intensity.
- The upper and lower clamps adopt patented technology, which has high flatness and high long-term application stability. The tools for corner cleaning are made of alloy material and are precision machined after quenching, which is standardized and supports interchangeability.
- The positioning system adopts high-precision linear square guide rails, and the feeding system is equipped with large inertia servo motors, which ensures high stability and positioning accuracy.
- Equipped with color touch screen and Siemens PLC, friendly man-machine interface and simple programming.
- The machine body is welded by thick-walled rectangular steel pipe, which has strong weighing capacity and is not easy to deform.
Optional
- Variable welding modes: seam, single-sided seamless, double-sided seamless.
- Clamp preheat to increase the strength of the welding corner.
Technical Parameters
| Model | HQ-D |
| Power supply | 380V/50Hz |
| Total power | 25Kw |
| Air pressure | 0.6-0.8Mpa |
| Weld size | 380*430mm-1800*3000mm |
| Welding height | 20-120mm |
| Welding width | 0-120mm |
| Overall dimension | 14000*5350*1850mm |
Accessories
| Electric components | SCHNEIDER |
| Temperature controller | WINPARK |
| Buttons | SIEMENS |
| Solenoid valve | AIRTAC |
| Air filter | AIRTAC |
| Linear guide rails | PEK |
| Air cylinder | BESTEN |
| PLC | SIEMENS |
