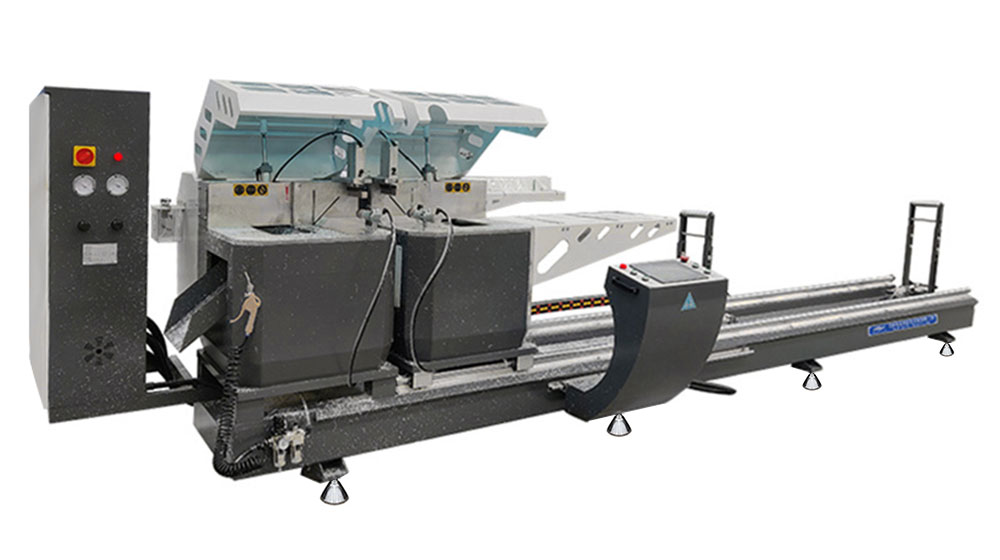

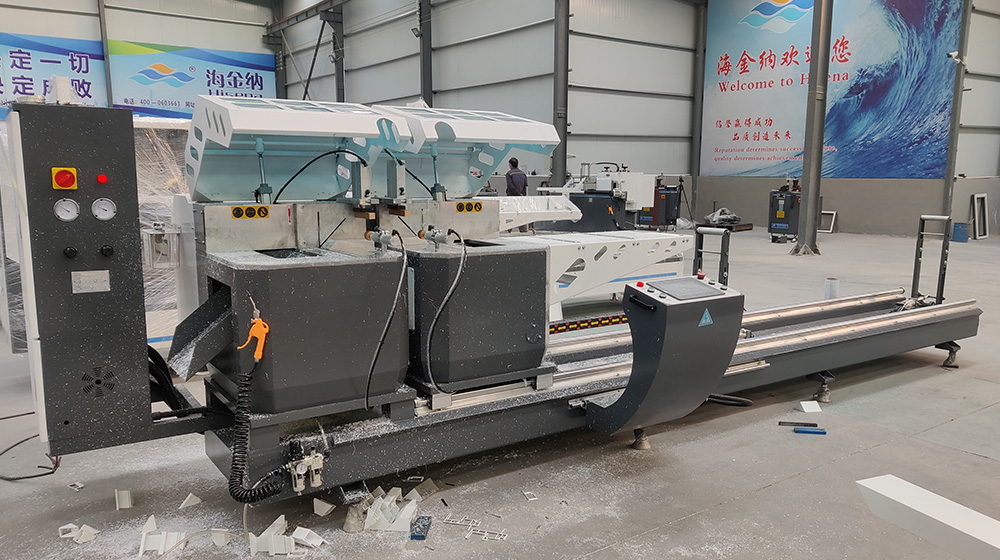

LJB3A-500×4200 CNC double head upcut saw

LJB3A-500*4200 is a fully automatic double head upcut saw for 90 degree and 45 degree cutting, used for the production of aluminum and PVC windows and doors. The cutting angle, length and quantity can be set through HMI and executed automatically.

Standard Features Technical Parameters

Standard Features

Applicable material: aluminum and pvc profile.

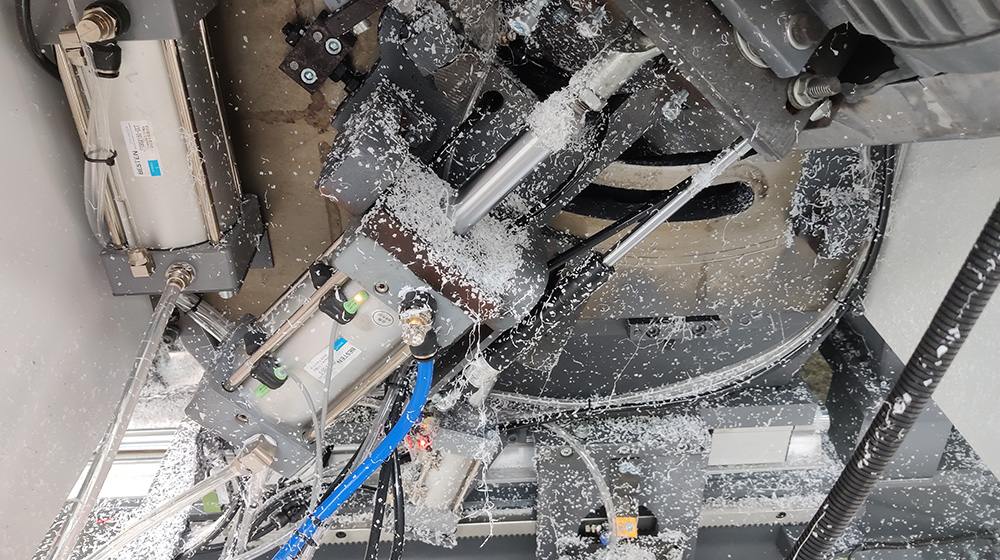

Hydro-pneumatic saw feed.

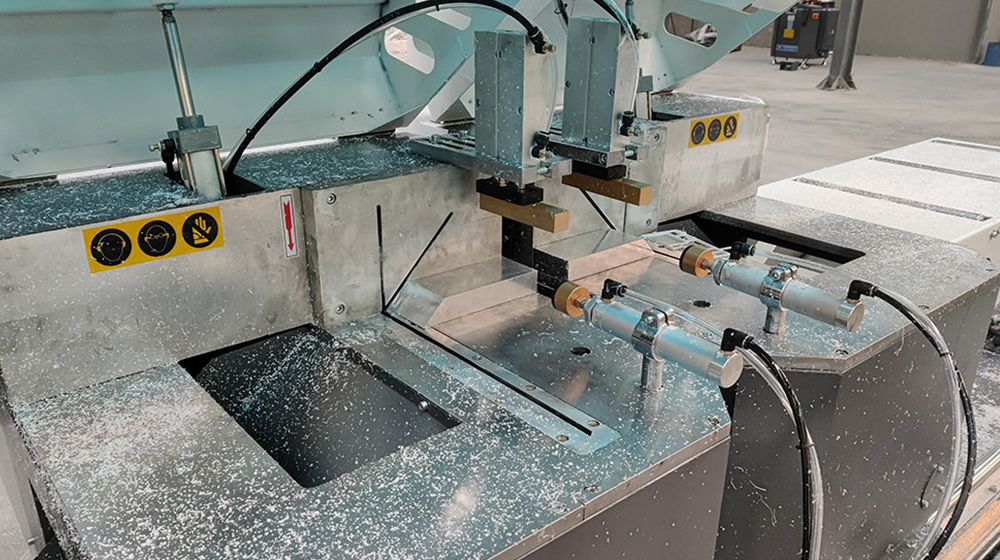

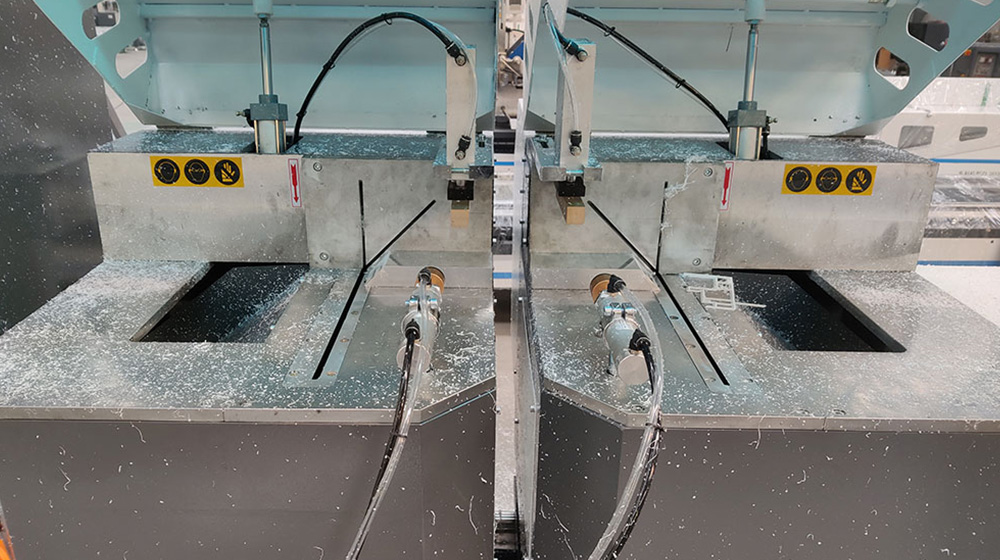

45 degree bevel cutting and 90 degree straight cutting.
Blades feed from bottom to top which can get a large cutting width.
Servo-controlled right head positioning and feeding to ensure accuracy.
The CNC operating system provides 3 processing modes: Manual, Auto and Angle(for cutting corner cleat).
Comes standard with two pneumatic lift stands for supporting the profile.

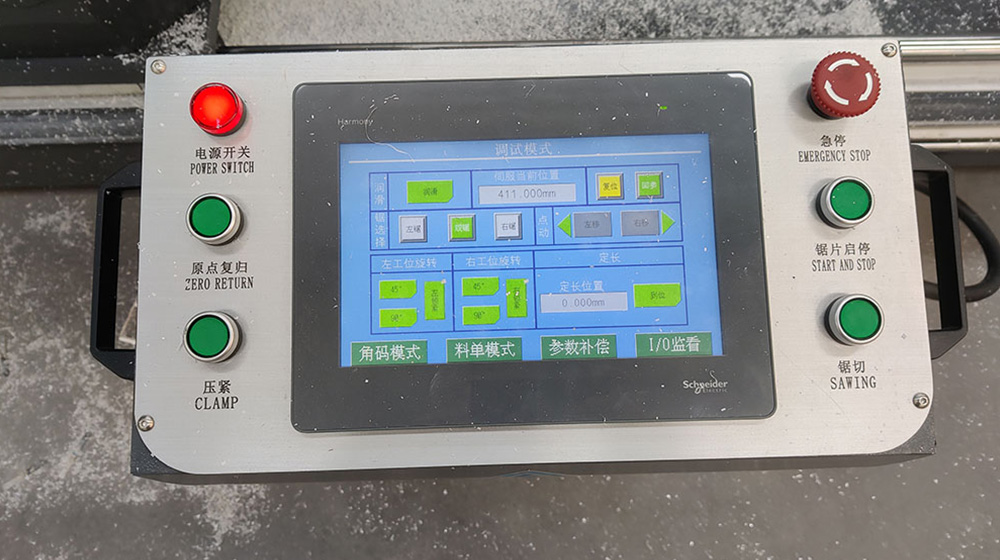

10 inch LCD touch screen color monitor.
Automatic lubrication system.

Technical Parameters

Model	LJB3A-500*4200
Power supply	380V 50Hz
Motor power	2*2.2KW
Servo motor power	0.75kw
Air pressure	0.6-0.8Mpa
Air consumption	200L /min
Rotation rate	2840rpm.
Cutting length	420(320)-42000mm
Blade size	Ø500mm
Cutting angle:	90 °/45 °
Cutting W x H	230100mm，25090mm(45 deg)
Repeatability	≤0.2mm
Angle tolerance	±5′
Plane of cutting surface	≤0.10
Cutting profile surface roughness	Ra12.5um
Size: (width × high × long)	5900mm1750mm1800mm
Weight:	1800Kg
