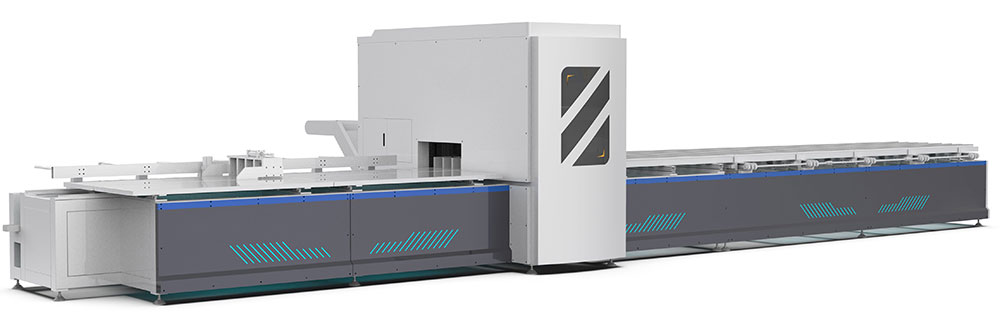

JZP-4-6000 CNC cutting center

JZP-4-6000 is a CNC cutting center or called cutting production line, this line includes 5 units: control unit, loading unit, feeding unit, cutting unit and unloading unit. It is designed to improve production efficiency and optimize production schedule while maintaining cutting quality. It’s used for double miter 45 degree cutting,v cutting and mullion cutting of pvc profile,4 pieces of profiles can be cut at a same time.

Standard Features Technical Parameters

Standard Features

Control unit
The control unit is equipped with an industrial computer and 5 axis servo drive system.
Equipped with optimized software for reasonable production schedule, graphical display of various cutting methods.
Equipped with touch screen monitor.
Cutting unit
Equipped with two spindle motors.
The distance between the two motors is adjustable to switch between double miter 45 degree cutting, V cutting and X cutting
Asynchronous feed design prevents waste from splashing onto the motor for safety and accuracy.
Feed unit
Including gantry infeeder and outfeeder.Both are clamping type feed.
Infeeder is for pre-feed and 1^st
Outfeeder is for feeding to the cutting length,.This design avoids the cumulative error caused by continuous feeding
Loading unit
It is designed with 5 sets of two sets of retractable feeding devices, and the synchronous transmission of multiple sets of feeding devices is realized through the synchronous belt. During the processing of one set, the other set can continue to be manually placed, and the cutting time can be reasonably utilized.
Unloading unit
The receiving table before discharging can move forward and backward, and is set to two-stage pushing and discharging mode. When cutting, it avoids the gantry pulling device, and moves to the discharging table when receiving material, which is convenient for the operator to take the material.

Technical Parameters

Model	JZP-4-6000	Cutting length	450-6000mm
Air pressure	0.6-0.8Mpa	Max.cutting width for single profile	120mm
Air consumption	100L /min	Max.cutting height	120mm
Input power	10.5kw	V notch depth	<=60mm
Rotation rate	3000rpm.	Overall dimension	11500*4500x2280mm
Blade size:	Ø550Ø304.4mm*140T	Weight	3500Kg
