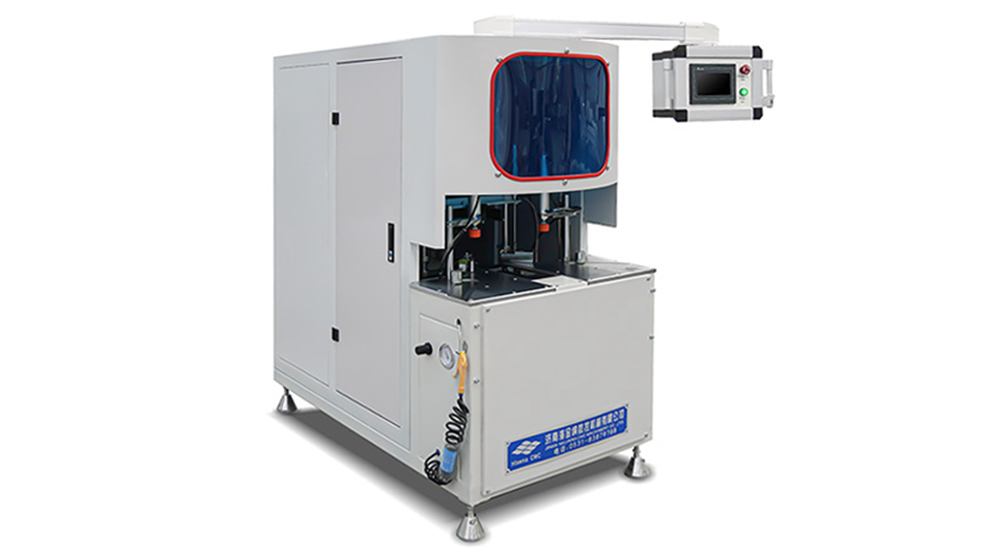

QJ-S3 CNC corner cleaning machine (3 tools)

QJ-S3 is a CNC corner cleaning machine for making upvc windows and doors.

Standard Features

For cleaning 90 degrees corners of pvc windows and doors.
Three tools are separately for cleaning the upper, lower and external corner seams.
2 axis CNC control system.
Programs are automatically generated by manual simulation.

Optional

Technical Parameters

Model	QJ-S3	Profile height	20-120mm
Power supply	AC 380V 50Hz	Grooving depth	0.3±0.15mm
Input power	1.5kw	Grooving width	3±0.15mm
Air pressure	0.4-0.6Mpa	Clean type	Upper,lower and external corner seams
Air consumption	100L /min	Overall dimension	1510x850x1780mm
Profile width	20-120mm	Weight	700kg

Accessories

Items	Brand
Electric components	SCHNEIDER(FRANCE)
Buttons	SIEMENS(GERMANNY)
Soleniod valve	AUSHINE(USA)
Air cylinder	BEST(CHINA)
Air gauge and filter	SHILIAN(CHINA)
Cable	LIANSHENG TRVV HIGH-FLEXIBLE(CHINA)
Motor	FANGDA(CHINA)
PLC	DELTA(TAIWAN)

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
