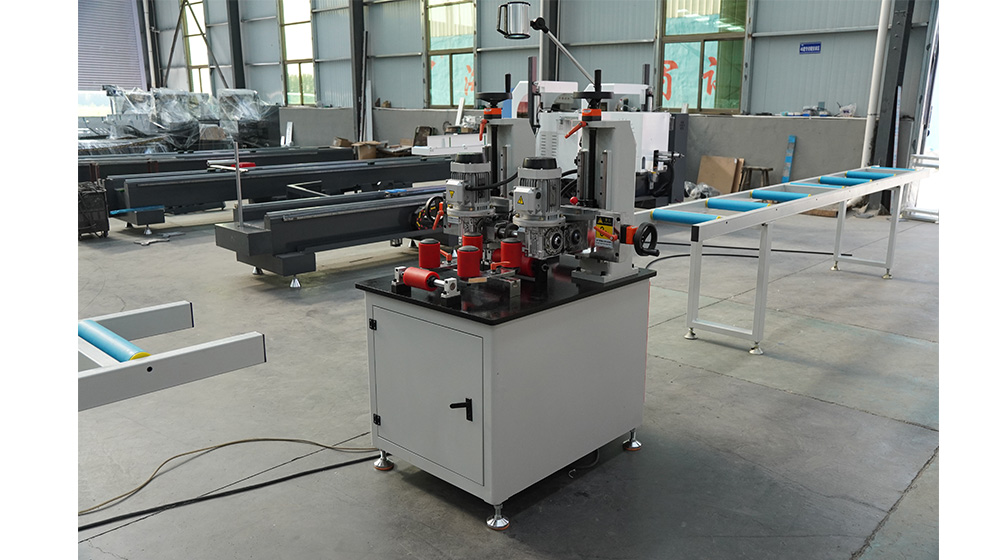

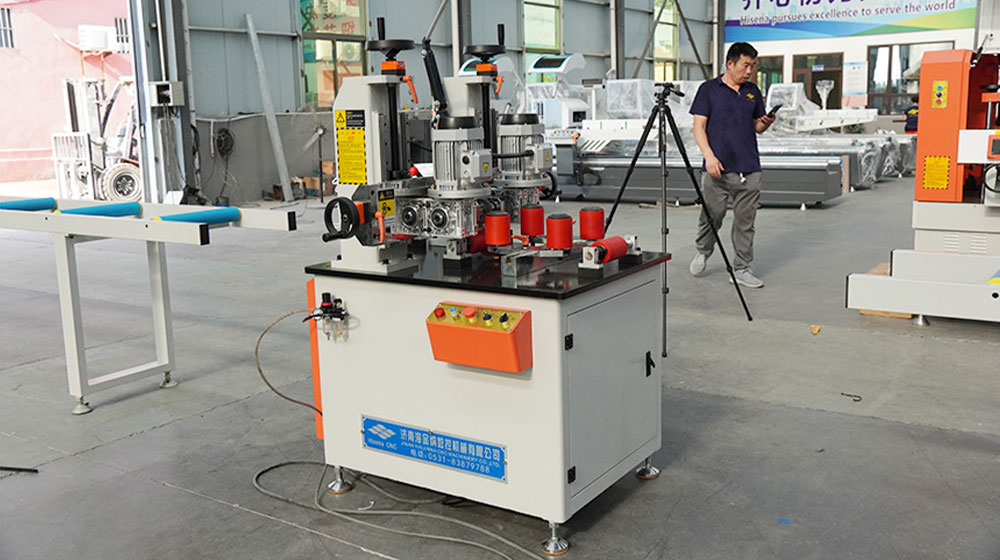

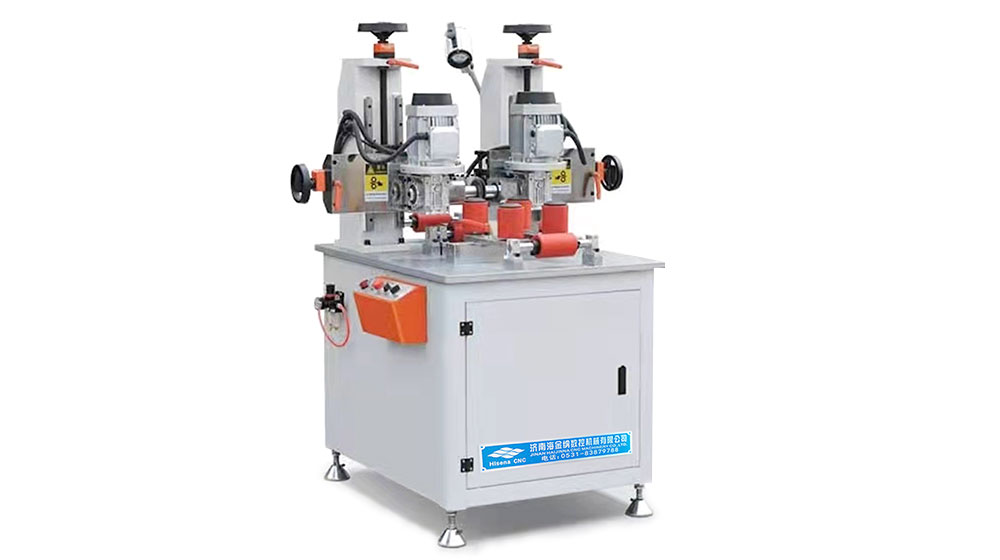

HKC-1 Knurling machine

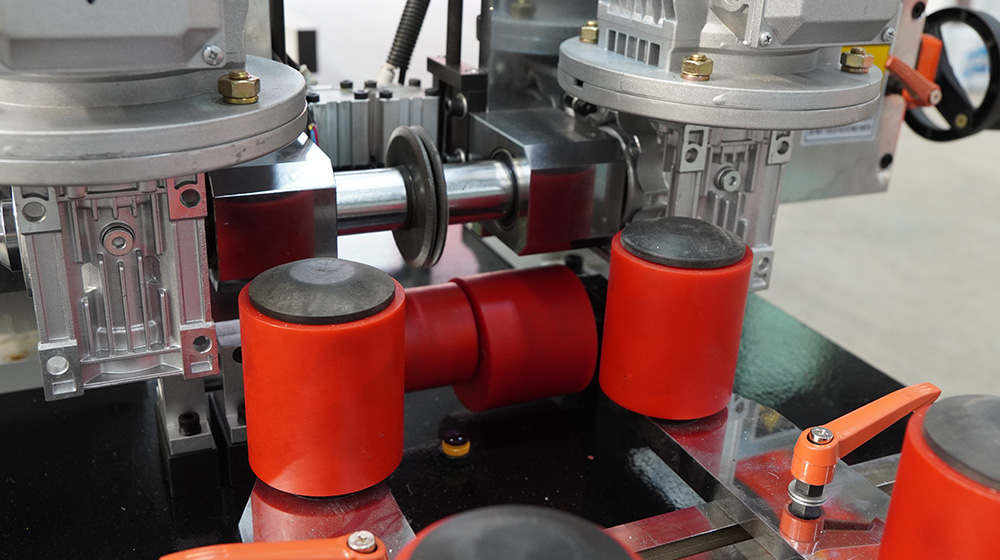

HKC-1 is a knurling machine which is used for the 1st step of assembly of thermal break aluminum profile. This machine can realize knurling and assembly of heat insulation strips. The knurling is to increase the axial shear force.

Standard Features Technical Parameters Video

Standard Features

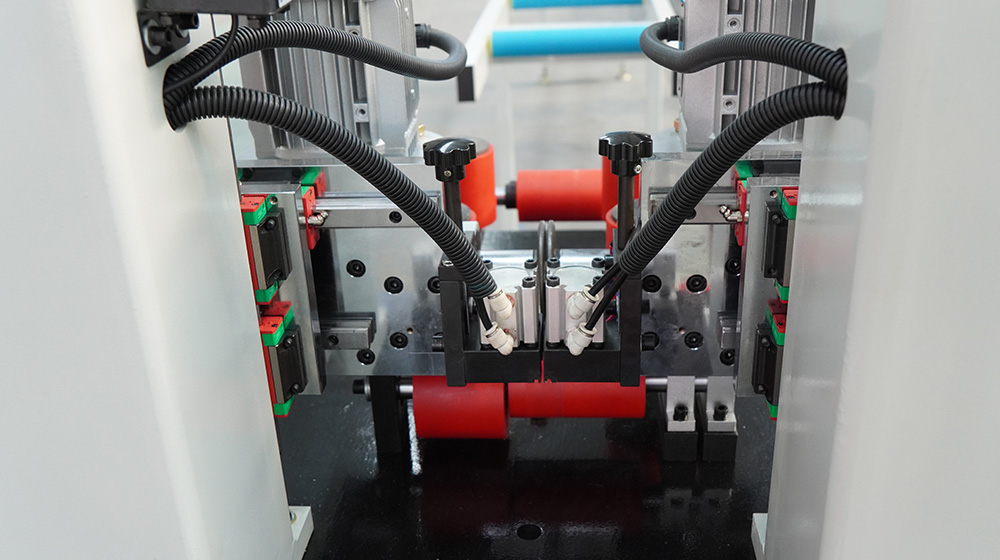

Thermal break trips are automatically clamped when inserting.
Knurling height and spacing are adjusted by the handwheels.

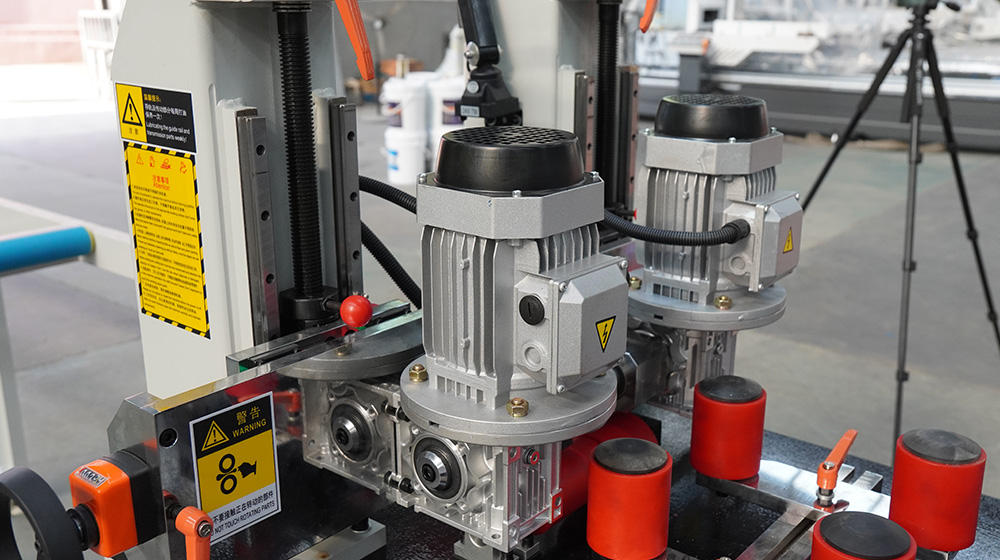

The transmission mode is to drive the knurling discs to work through the motor, the worm gear reducer and the main shaft.
AC variable frequency stepless speed regulation.

Technical Parameters

Model	HKC-1
Power supply	380V/50Hz(to order)
Total power	1.5kw
Knurling disc size	Ø105mm
Feeding speed	10-60m/min
Maximum profile size(width*height)	220*260mm
Conveyor dimention	4500*550mm
Machine dimension	7509501500mm
Weight	600kg
