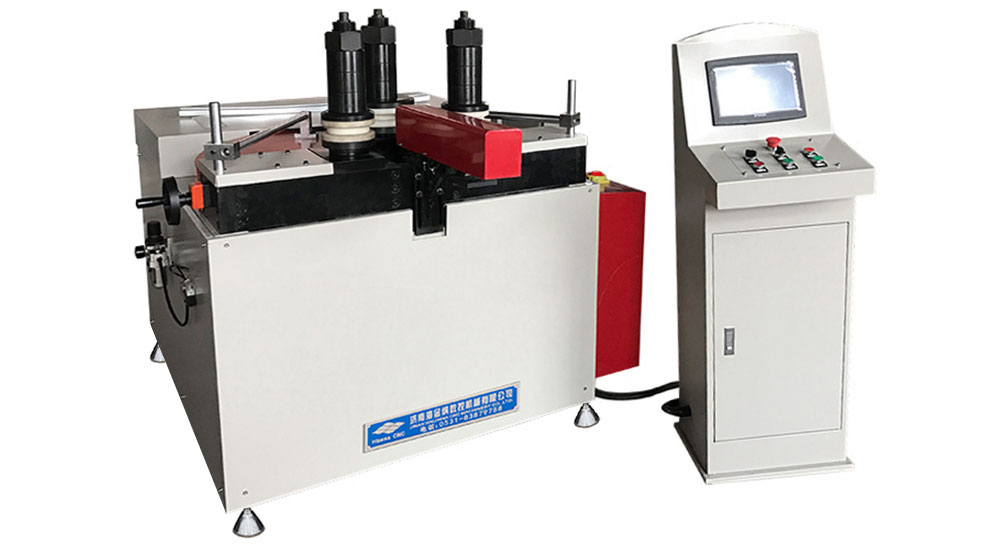

YH200-CNC 3 rollers arch bending machine for aluminum profile

YH3S-CNC is a 3 rollers CNC arch bending machine which is used in aluminum windows and doors,LED track rail or other light metal profile bending.

Standard Features

Applicable material:aluminum,light metal profile.
Automatic positioning and feed.
Curved shapes can be circles, semicircles, arcs, ellipses.
Proportional servo hydraulic feed system.
Stepless speed regulation of three rollers, the system automatically compensates for the difference in linear speed between the inner circle and the outer circle.
Accurate radius (R) control and easy to complete continuous processing of multiple arcs and complex graphics.
HMI is simple and easy to understand.

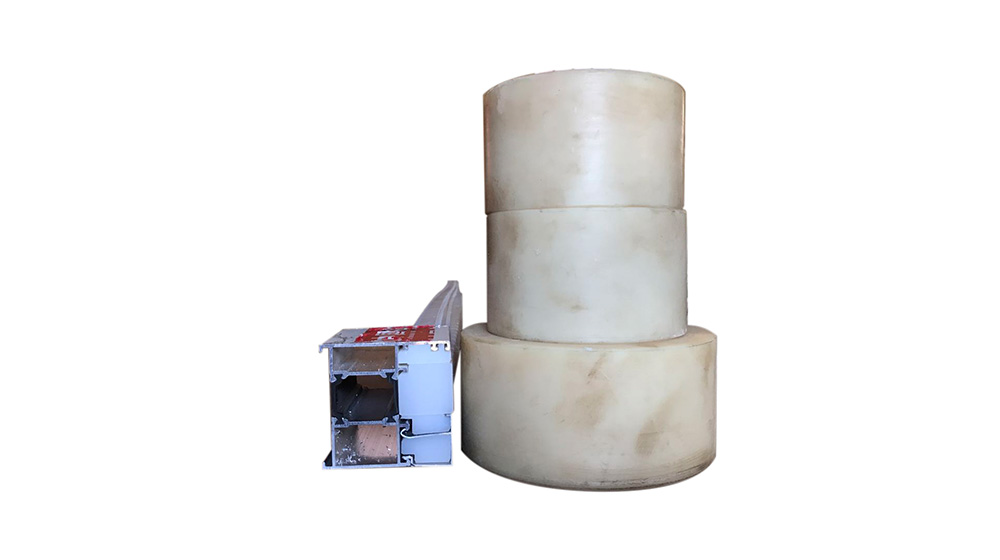

The machine needs to be used with the molds to prevent deformation, scratches and wrinkles of the profile.

Technical Parameters

Model	YH3S-CNC	Repeatability of Y axis	<=0.02mm
Power supply	380V/50Hz	Profile size range	H260*W100mm
Power	6.5Kw	Roller shaft length	300mm
Roller speed	1-15r/min	Roller shaft diameter	65mm
Torque of X axis	Max.2600NM	Roller shaft distance	340-550mm
Repeatability of X axis	<0.4mm	Maximum diameter of tube roller dies	260mm
Thrust of Y axis	20T(max 23T)	Weight	1000kg
Y axis stroke	0-220mm	Dimension	1500×1300×1300mm

Accessories

Related Products

QUESTIONS & ANSWERS

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
