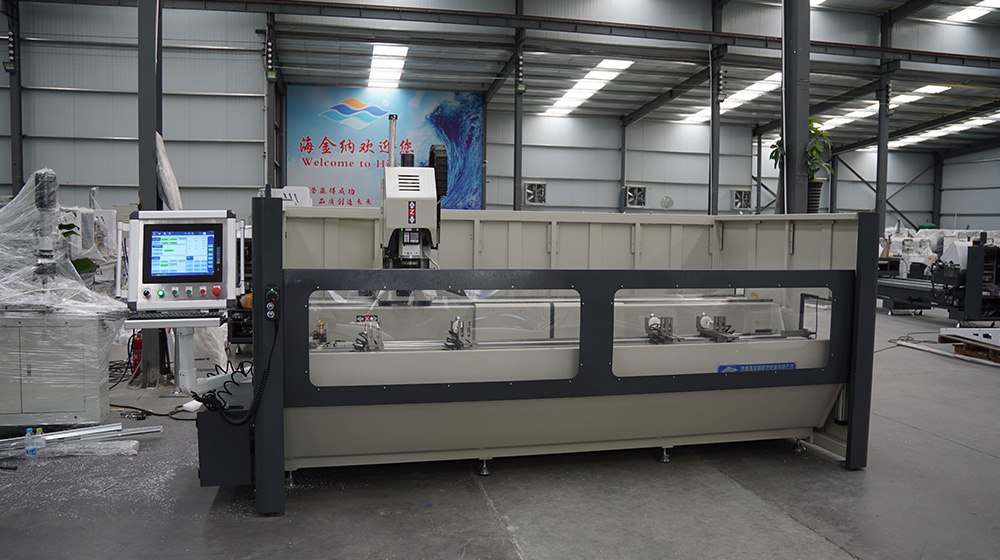

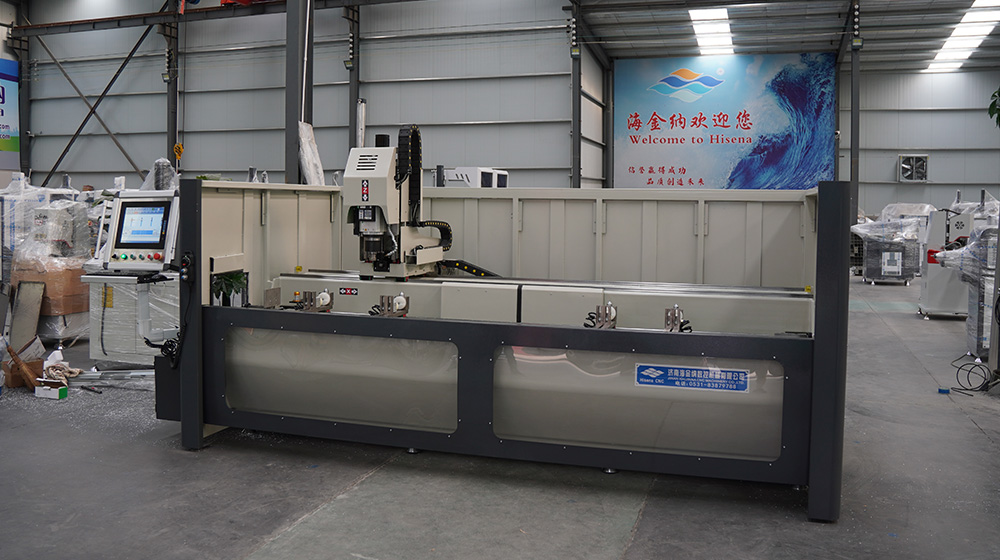

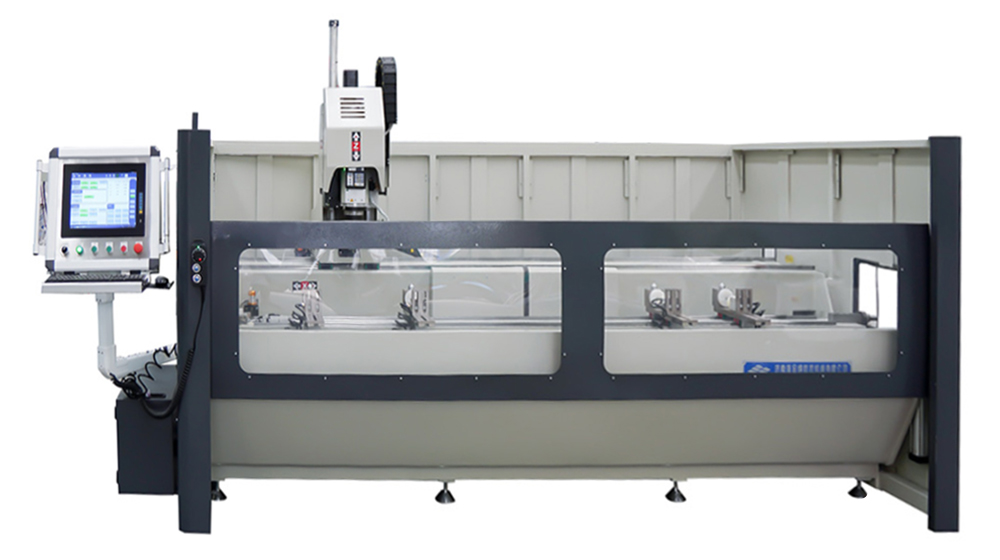

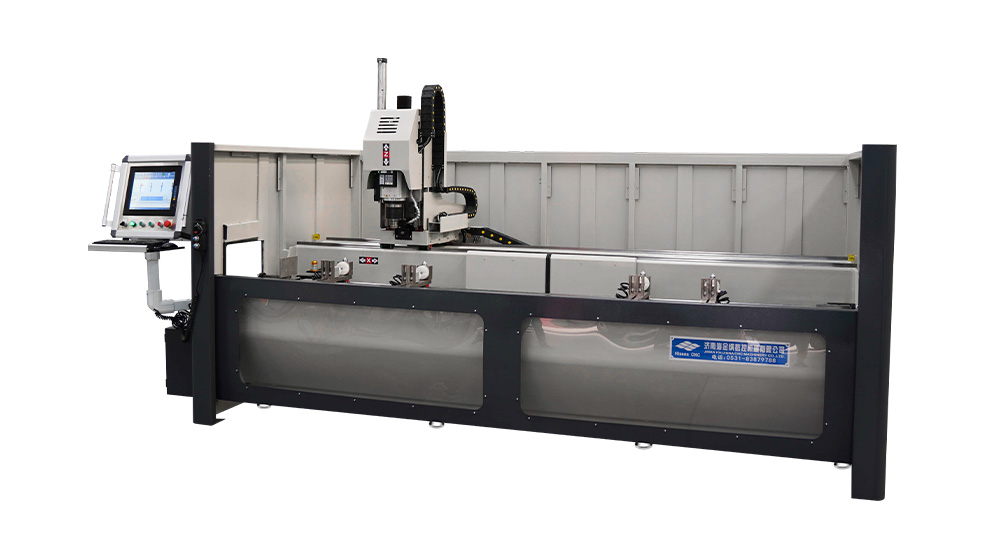

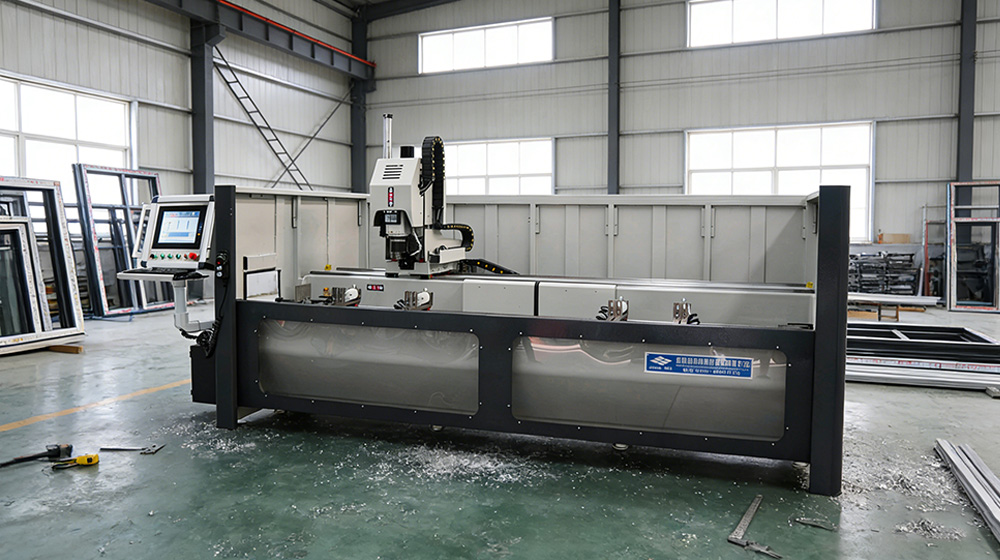

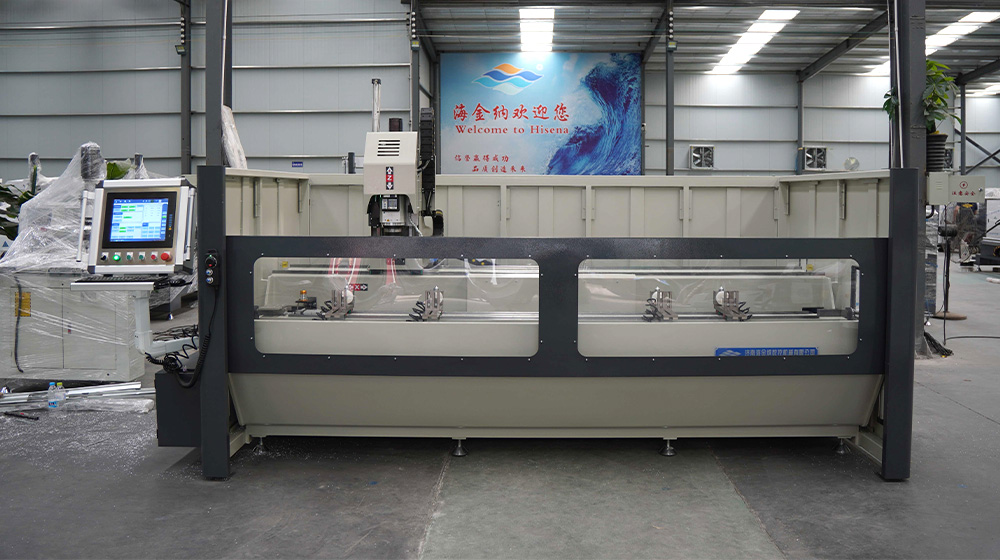

MC3-3000 3 axis CNC machining center

MC3-3000 is a CNC machining center,It has X,Y and Z three CNC controlled axis.Drilling,contour or pocket milling and tapping can be done on this machine. This machine can be used for processing windows,doors,façade and curtain wall.As well as other products made of aluminum tubes. Example,the lock holes and slots,hinge holes,weep slots and assembly holes on aluminum windows and doors.

Standard Features Optional Technical Parameters Accessories Video

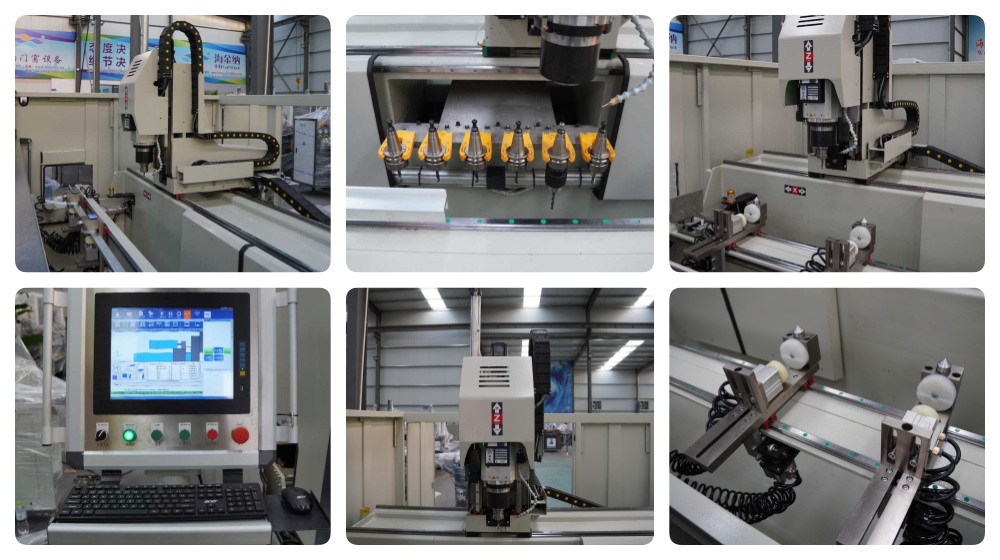

Standard Features

Applicable material:aluminum,pvc and wood,steel tube is optional.
Equipped with CNC numerical control system and CAM software which can read the .DXF drawing.
Simple programming, the software comes with a graphics library containing a variety of machining hole patterns.

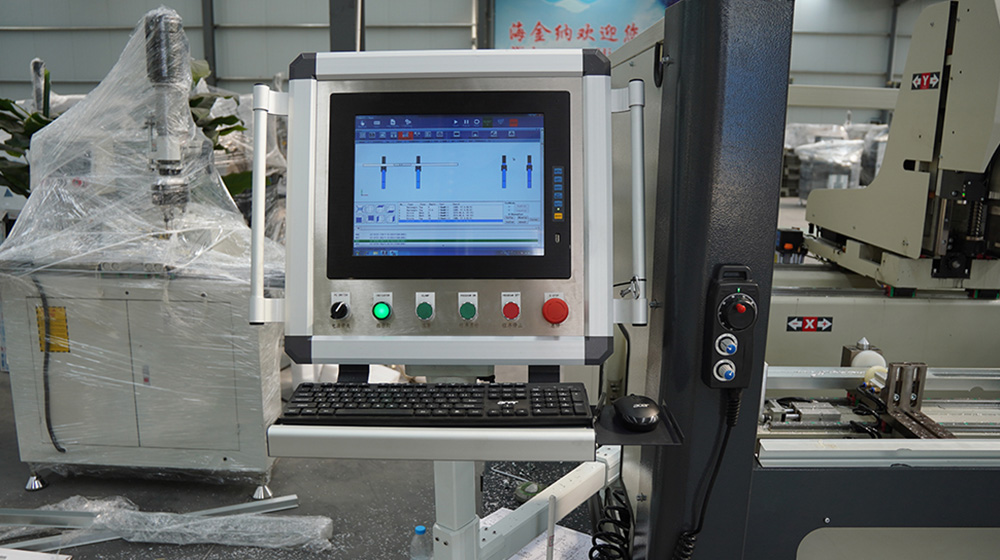

Equipped with hand-operated pulse generator.

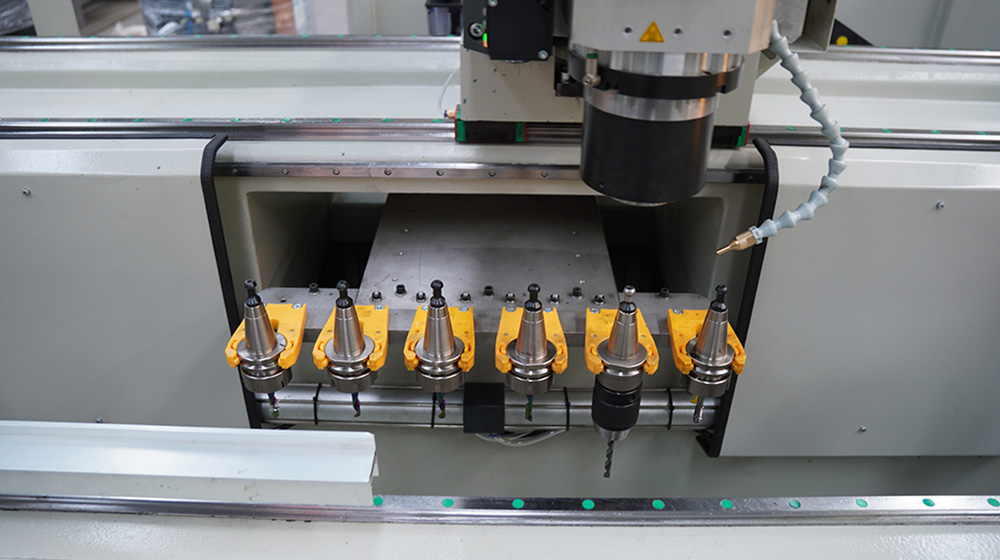

Equipped with tools magazine,automatic tool change.
Equipped with automatic tool setting guage.
The position of the clamps can be scanned and adjusted automatically without manual intervention
The zero-point stop can be automatically turned over which is friendly for the processing at or near the end face.
The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.
Automatic coolant spraying.
Automatic lubrication.
Self-lifting safety guard.

Optional

Tapping
The stroke of each axis
Wireless connection and transmission with optimized software.
Label printer

Technical Parameters

Model	MC3-3000	Air consumption	100L/min
Power supply	380v/50hz	Magazine	6 tools

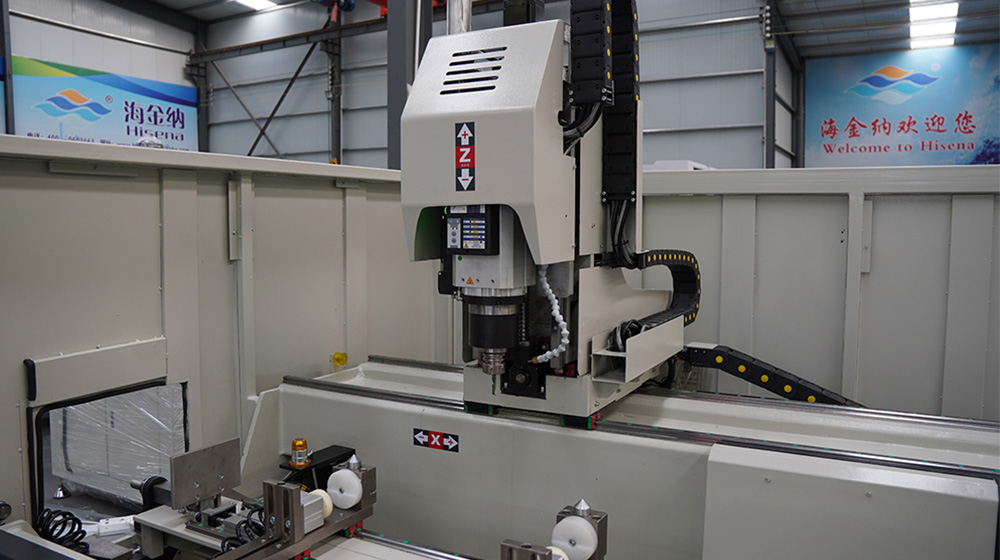

Electrospindle power	8kw	Tool holder	ISO30
Rated speed	12000rpm	Collet	ER32
Max.speed	24000rpm	X-axis speed	0-60m/min
X-axis stroke	3000mm	Y-axis speed	0-60m/min
Y-axis stroke	320mm	Z-axis speed	0-60m/min
Z-axis stroke	300mm	Dimension	420020002350mm
Air pressure	0.6-0.8Mpa	Weight	1800kg

Accessories

Electrospindle	OLISPEED SAE145 +TTL(ITALY)
PLC	SYNTEC F01-21MA-E-VGA
Solenoid valve	FTG
Frequency converter	DELTA(TAIWAN)/ MODROL (CHINA)
Proximity switch	OMRON(JAPAN)
Servo motor	YASKAWA(JAPAN)
Servo driver	YASKAWA(JAPAN)
Guide rail	TBI(TAIWAN)
Ball screw	TBI(TAIWAN)
Electric parts	SCHNEIDER(FRANCE)
Operating Environment	Microsoft Windows 7

Video

Related Products

QUESTIONS & ANSWERS

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
