Standard Features

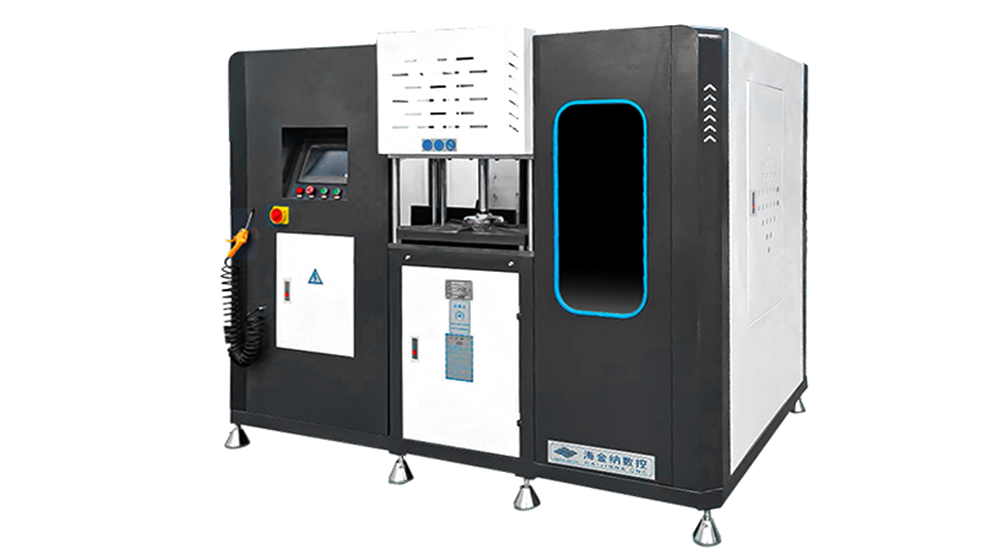

- This machine has X,Y and Z total 3 axes,servo feeding ensures the accuracy milling depth,height and width. The spindle can work in both vertical and horizontal planes by rotating, which is more efficient for large-size tenon processing.
- The machine body is all welded with industrial rectangular tube profiles, and after welding, it undergoes professional and effective treatment to remove internal stress. After professional precision machining by numerical control equipment, the accuracy of the entire machine operation and the stability of the speed are ensured.

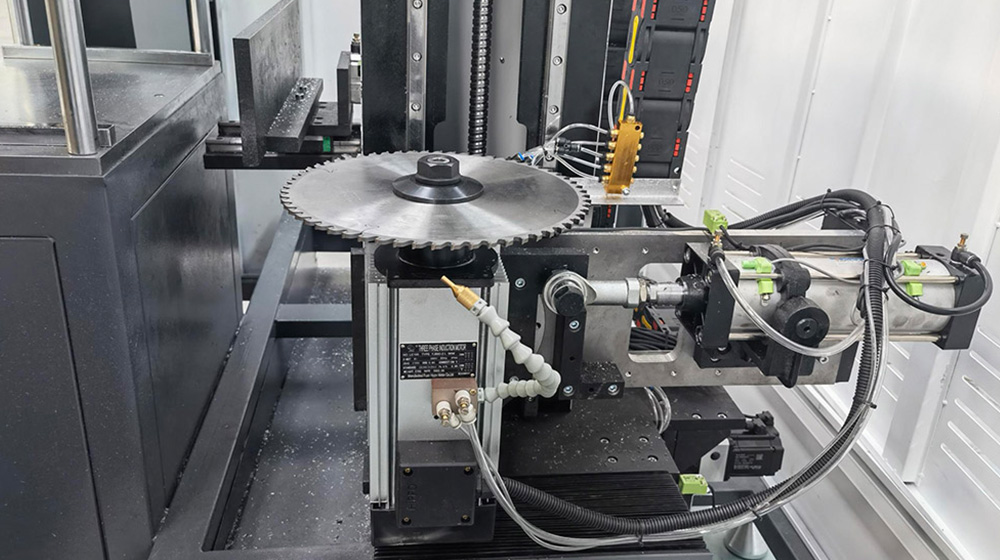

- High-rigidity, high-precision spindle: air-cooled spindle motor.
- It adopts TAIWAN HIWIN guide rail and rack, high-strength ball screw which ensure high feeding accuracy and stability.
- The PLC can memorize multiple sets of programs, transfer the programs according to the profile, and directly process them.
Technical Parameters
| Model | DXS-3+1 | X-axis stroke | 800mm |
| Power supply | AC 380V 50Hz | Y-axis stroke | 180mm |
| Input power | 5.3Kw | Z-axis stoke | 220mm |
| Air pressure | 0.5-0.8 M pa | Cutting angle | 0 and 90 degrees |

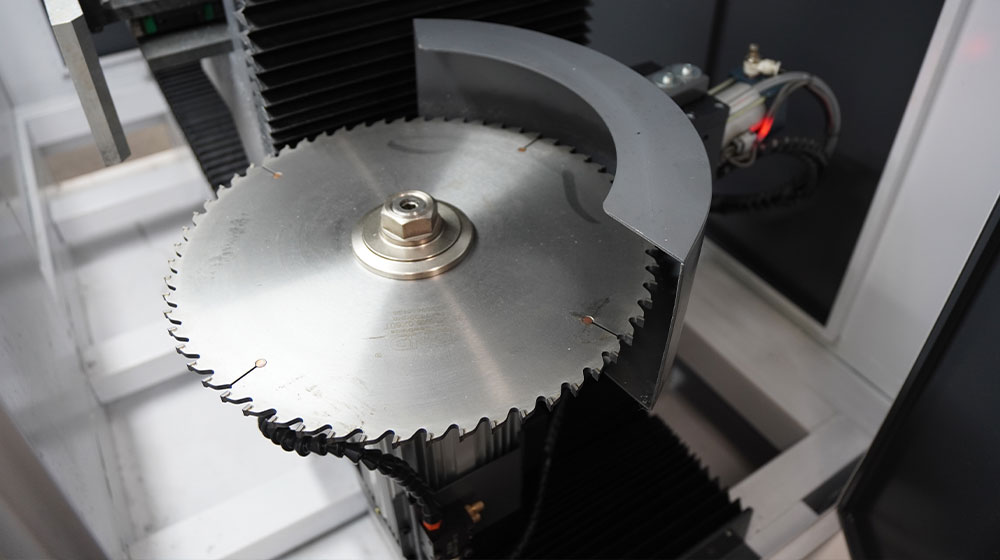

| Air consumption | 80L /min | Blade size | Φ300mm |
| Spindle motor | 3Kw 2800r/min | Dimension | 2100*1400*1800mm |
| Servo motor | 3*0.75Kw 3000r/min | Weight | 800kg |
configurations
| Item | Brand |
| CNC system | QINGLAN (CHINA) |
| Servo motor and driver | DONGLING(CHINA) |
| Spindle motor | FUAN(CHINA) |
| Electric parts | CHNT(CHINA) |
| Air parts | AIRTAC(TAIWAN) |
| Linear guides and ball screw | HIWIN(TAIWAN) |
| Solenoid valve | FTG |
