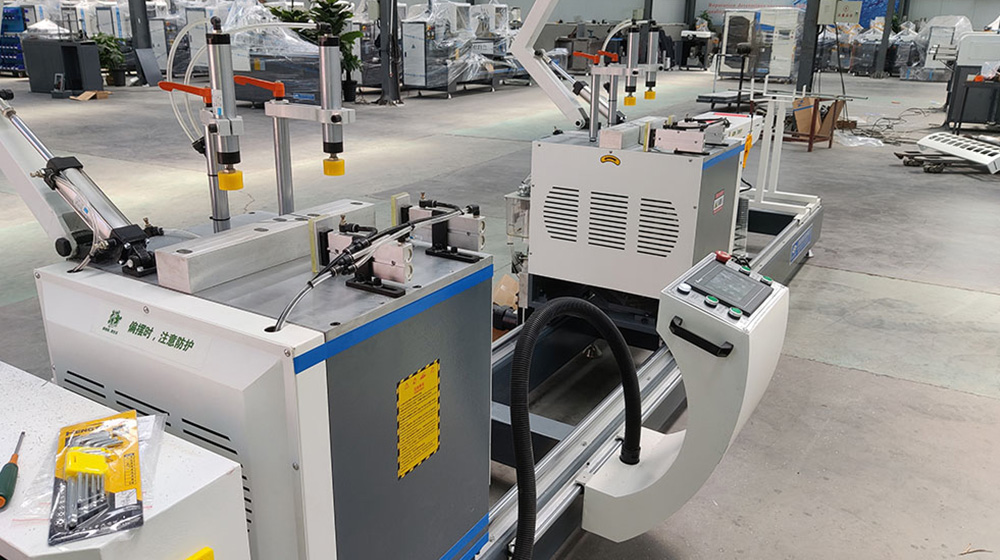

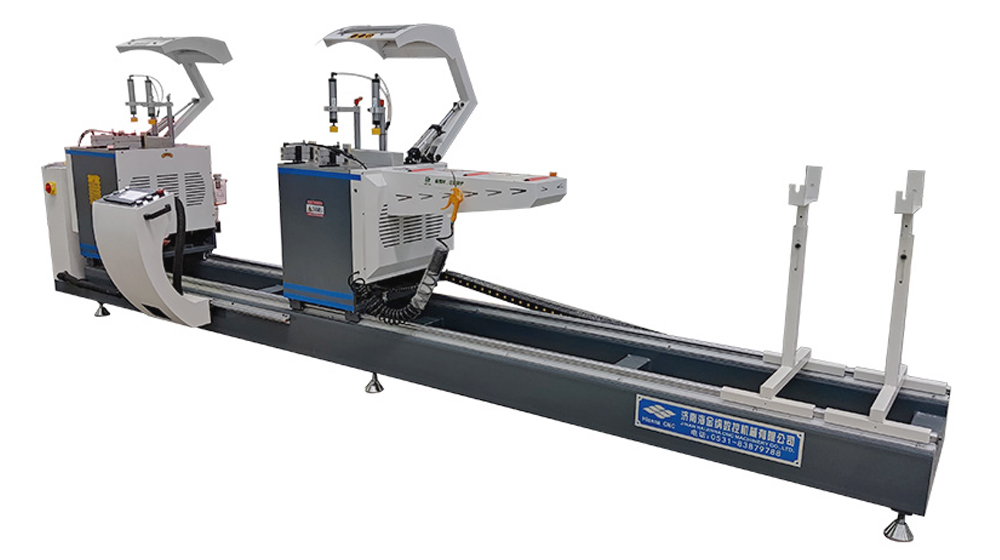

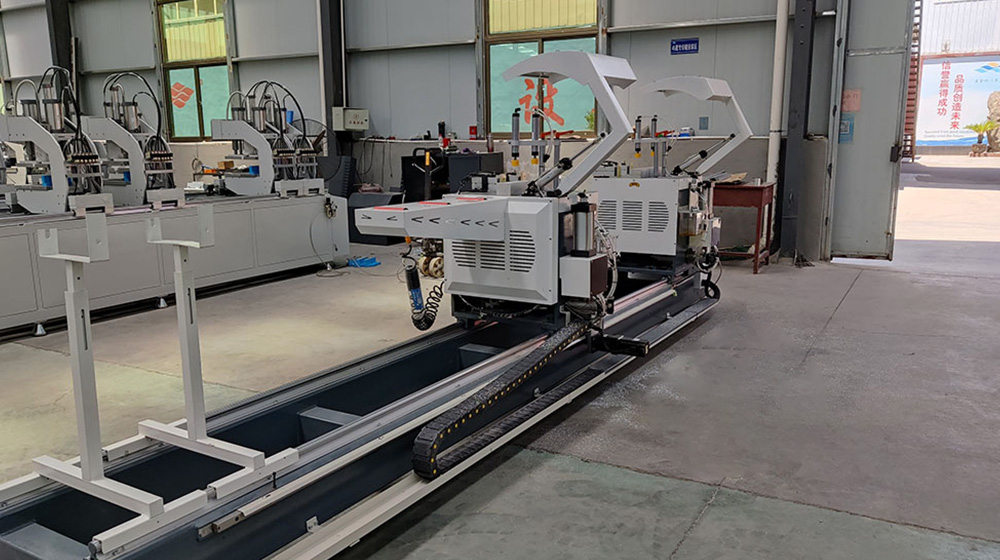

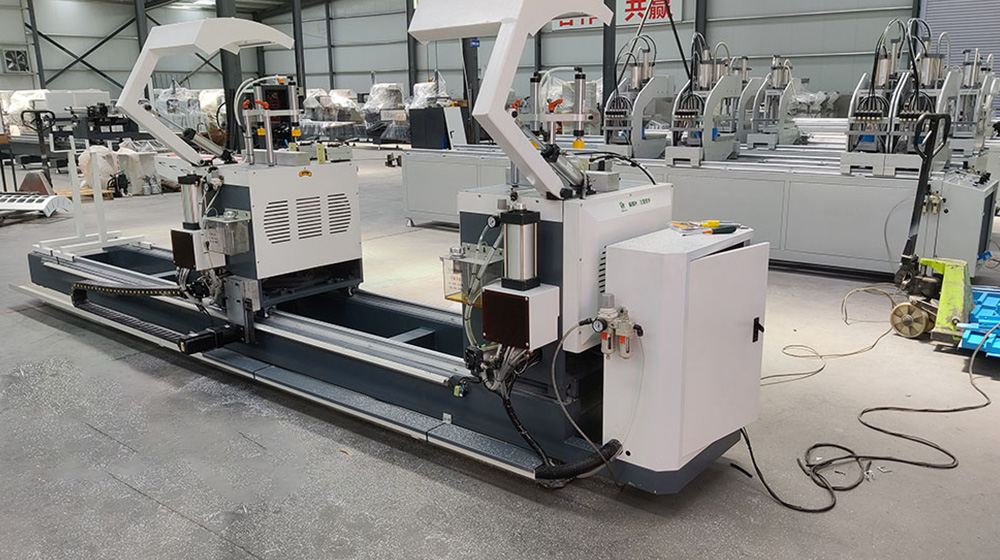

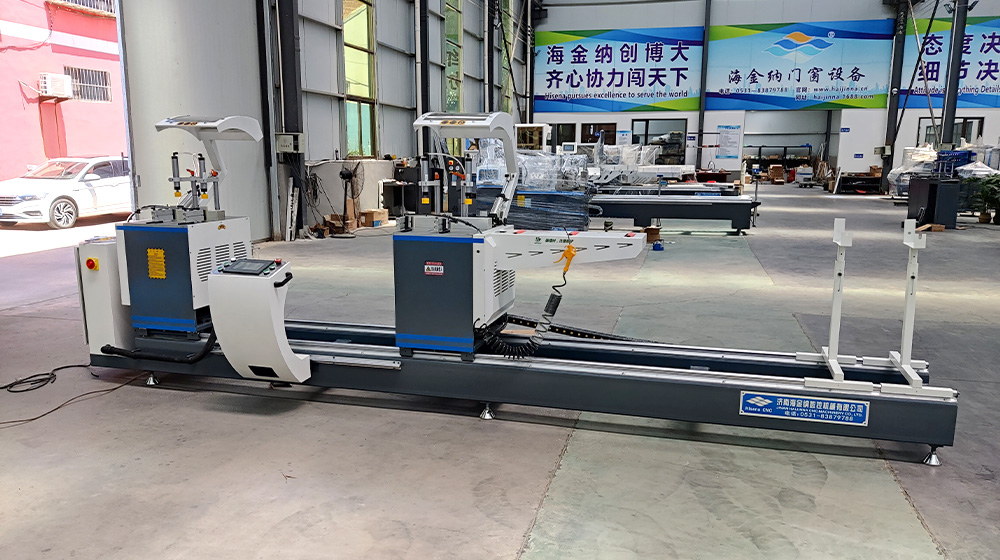

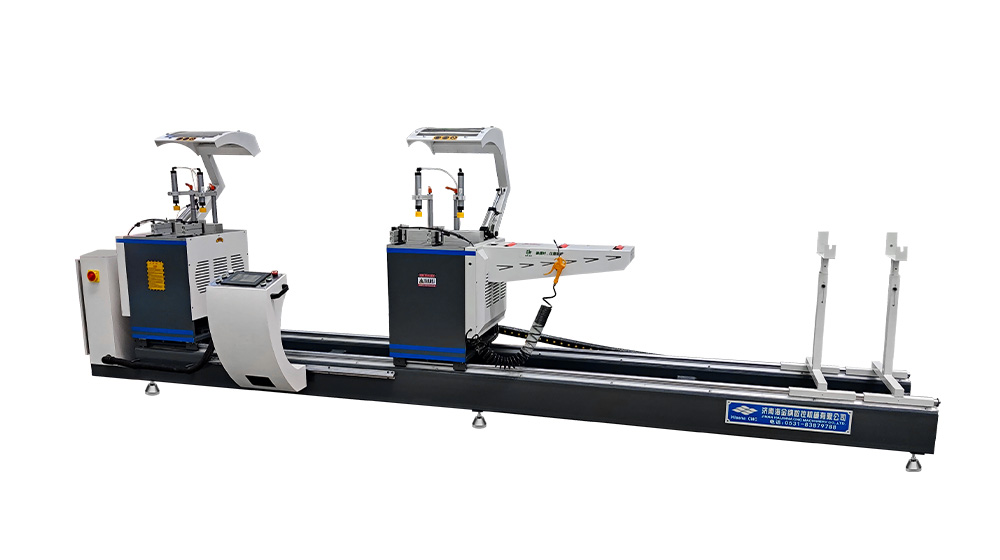

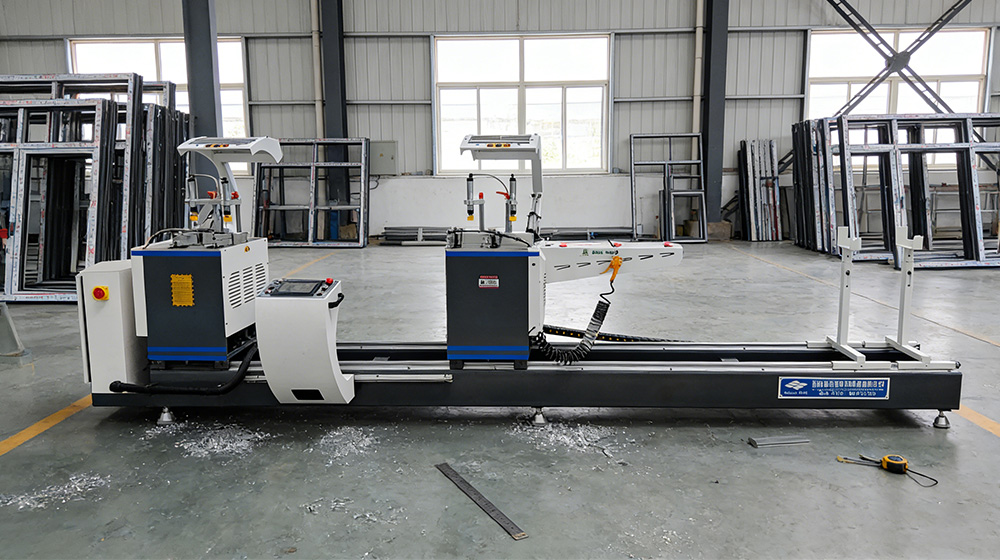

HJN5A-450×3900 CNC double head cutting machine for sliding door profile

HJN5A-450*3900 is a fully automatic double head saw for 90 degree and 45 degree cutting, used for the production of aluminum and pvc windows and doors. The cutting angle, length and quantity can be set through HMI and executed automatically.

Standard Features Technical Parameters Video

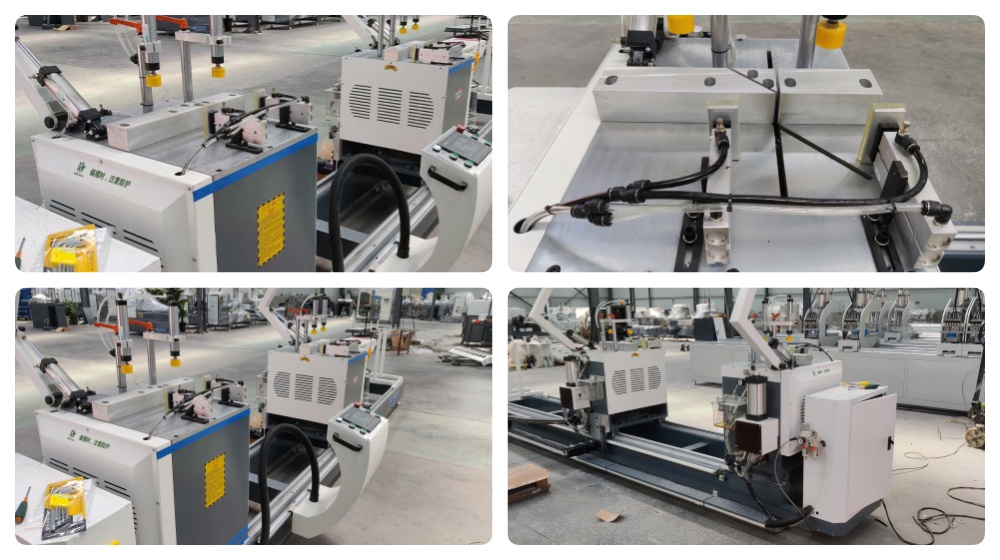

Standard Features

Used for cutting aluminum,pvc,thermal break profile.

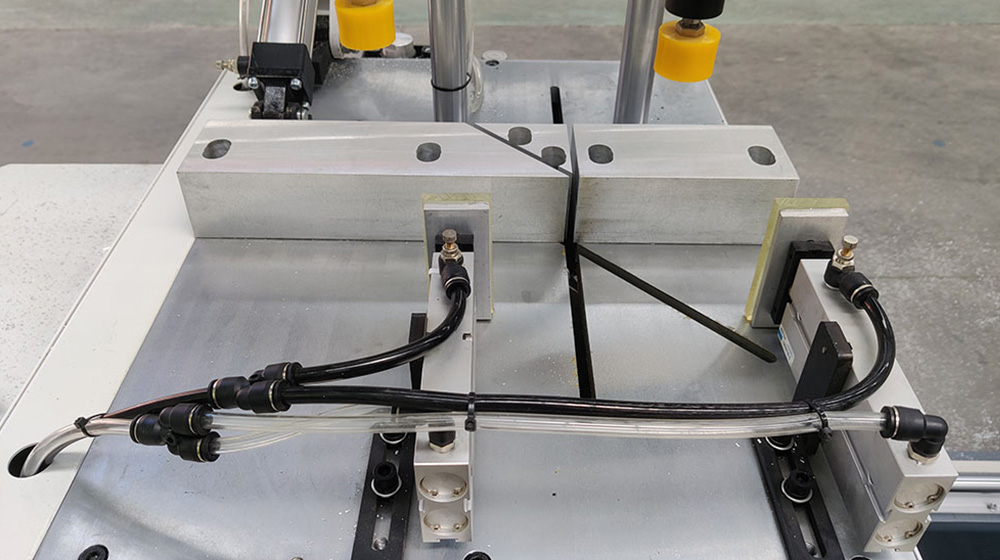

Equipped with magnetic backing plates for easy clamping,more friendly for the sliding door frame profile,such as Interior door, bathroom door.
Hydro-pneumatic saw feed
Saw heads can be pneumatically tilted at outward 45 and 90 degrees.
Equipped with high precision spindle motor
Servo-controlled right head positioning and feeding to ensure accuracy.
The CNC operating system provides four processing modes: Manual, Form, Over-travel, short( for corner cleat).

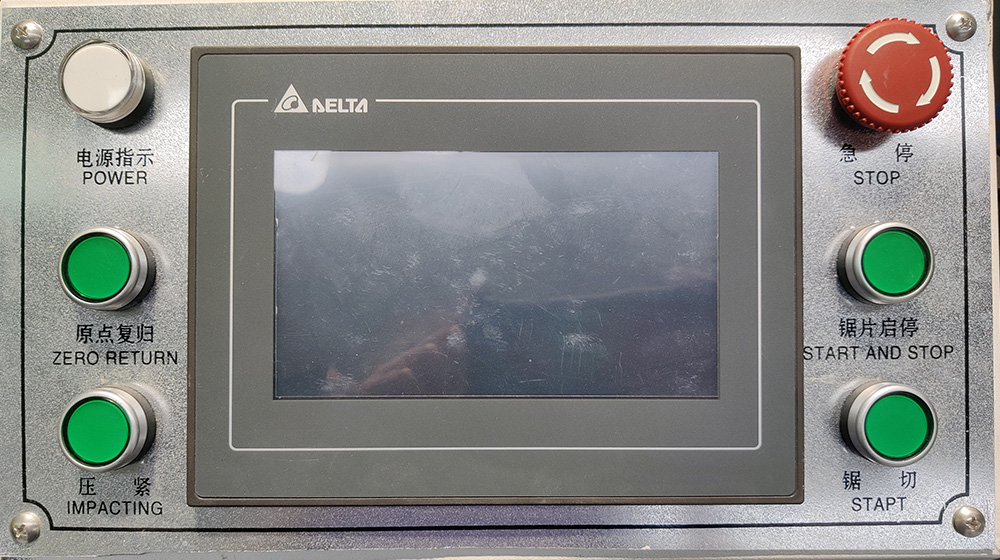

7 inch LCD touch screen color monitor.

Technical Parameters

Model	HJN5A-450*3900
Air pressure	0.5-0.8mpa
Air consumption	60L/min
Motor power	2*2.2kw
Blade size	Ø450mm
Spindle speed	2800rpm
Cutting angles	90°/45°
Planeness	≤0.1mm
Surface roughness	Ra12.5
Max.cutting height	135mm
Cutting length	320-3900mm
Dimension	4900×950×1600mm
Weight	1000kg
