HJN-Z550×6500 CNC cutting center

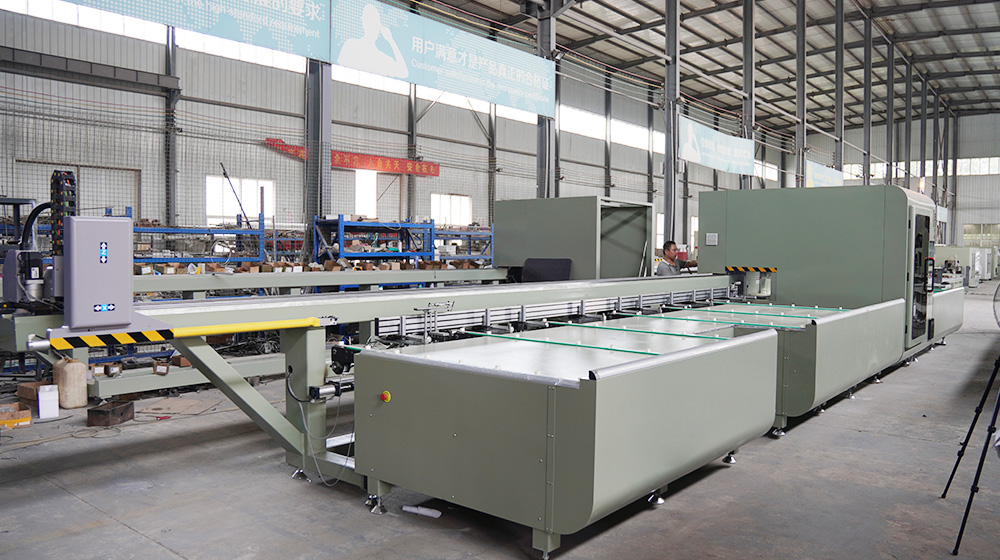

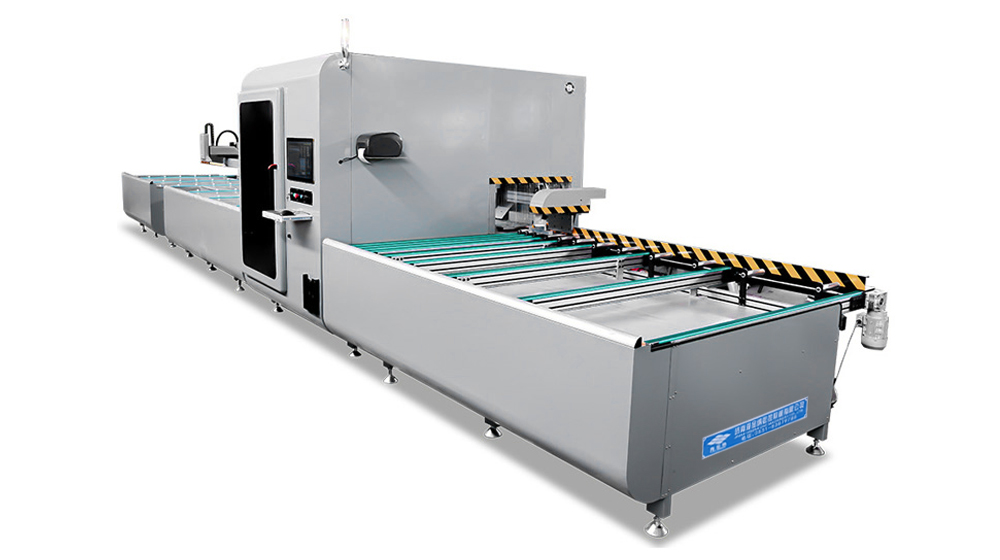

HJN-Z550×6500 is a CNC cutting center or called cutting production line, this line includes 5 units: control unit, loading unit, feeding unit, cutting unit and unloading unit. It is designed to improve production efficiency and optimize production schedule while maintaining cutting quality.The production capacity per shift is 2500 to 3000 pieces.

Standard Features Technical Parameters Accessories

Standard Features

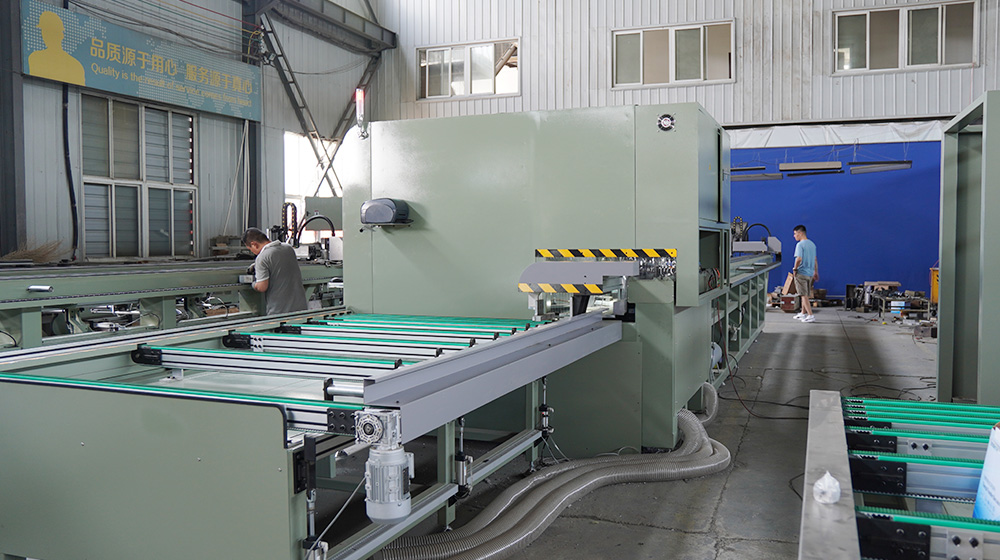

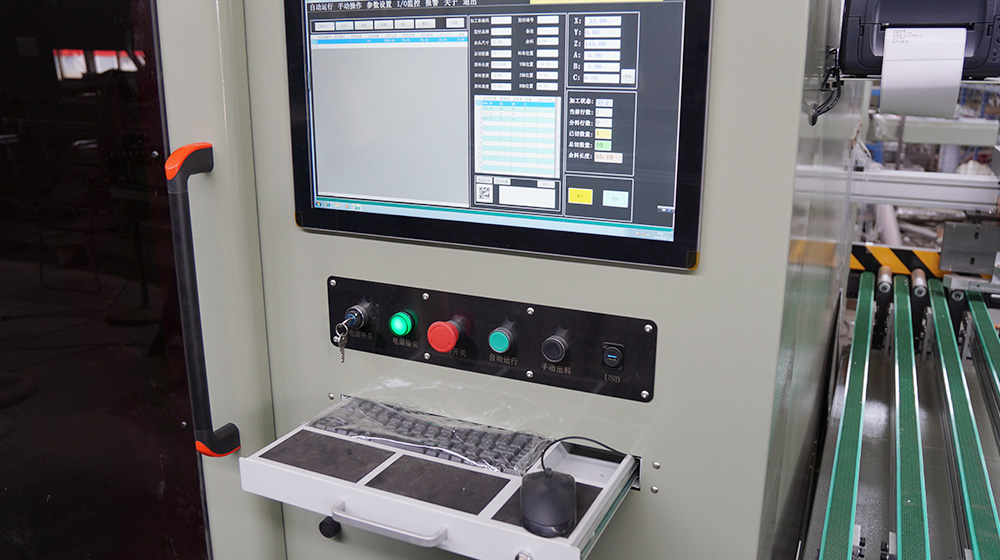

The control unit is equipped with an industrial computer and servo drive system.
Equipped with optimized software for reasonable production schedule, and also supports importing programs generated from other software via U-disk and wireless.
Six CNC axes, multi-stage clamping and holding devices are realized by CNA communication, frequency converter, driver bus and PLC.
HMI is easy to understand and operate.
7 profiles of loading capacity and automatic conveying.
Automaticgripper feed.
The cutting unit includes 3 spindles:two for mitre 45 degree cutting,one for 90 degree cutting.
Equipped with high precision spindle motor

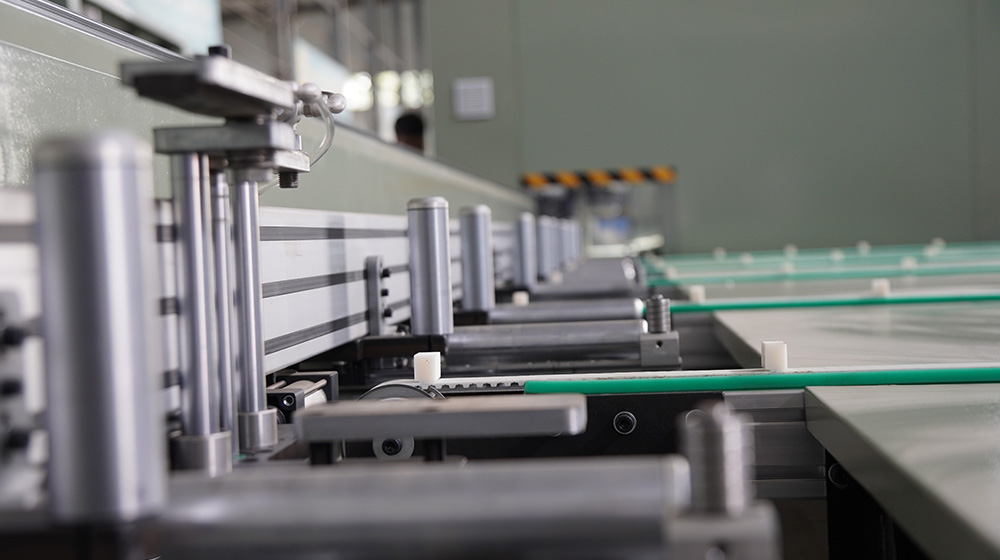

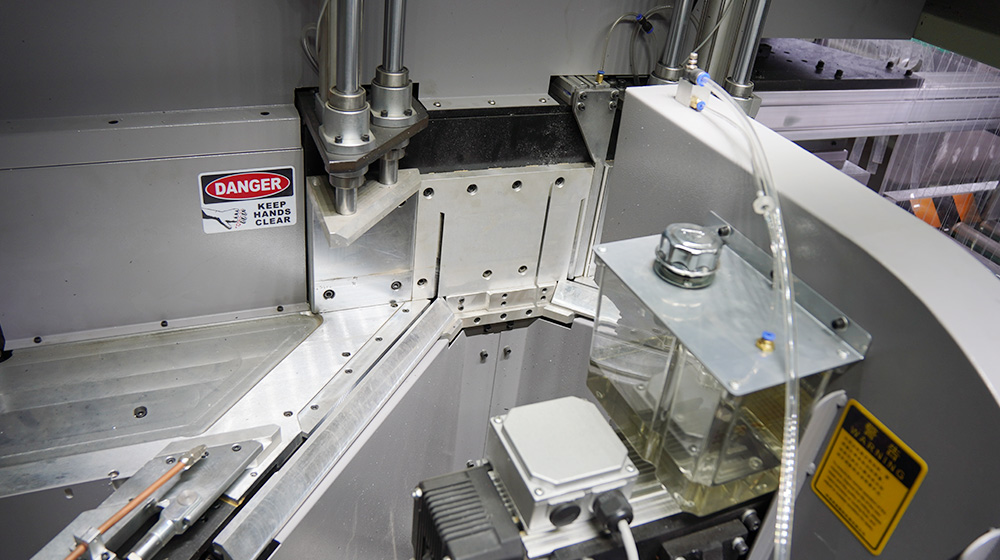

Profile automatically retracts to prevent scratches when the blade is retracted.
Equipped with belt conveyor and vacuum cleaner to discharge wastes and chips.
Automatic picking and conveying of finished products.
Equipped with label printer.
Automatic lubrication.

Technical Parameters

Model	HJN-Z550*6500	Max.cutting width	150mm
Air pressure	0.6-0.8Mpa	Cutting angle:	90°/45°
Air consumption	200L /min	Infeed stroke	6500mm
Input power	15kw	Outfeed stroke	1000mm
Spindle motor power	3*3kw	Rated infeed rate	80m/min
Rotation rate	2850rpm.	Rated outfeed rate	60m/min
Servo motor power	50.75kw,10.4kw	Repeatability	≤0.2mm
Loading capacity	7	Angle tolerance	4′-6′
Profile length	2500-6500mm	Flatness	≤0.1mm
Blade size:	Ø550Ø304.4mm*140T	Surface roughness	Ra12.5um
Rated feed rate	30m/min	Overall dimension	14000*4000x2400mm
Cutting length	300-3500mm	Weight	5500Kg

Model	HJN-Z550*6500	Max.cutting width	150mm
Air pressure	0.6-0.8Mpa	Cutting angle:	90°/45°
Air consumption	200L /min	Infeed stroke	6500mm
Input power	15kw	Outfeed stroke	1000mm
Spindle motor power	3*3kw	Rated infeed rate	80m/min
Rotation rate	2850rpm.	Rated outfeed rate	60m/min
Servo motor power	50.75kw,10.4kw	Repeatability	≤0.2mm
Loading capacity	7	Angle tolerance	4′-6′
Profile length	2500-6500mm	Flatness	≤0.1mm
Blade size:	Ø550Ø304.4mm*140T	Surface roughness	Ra12.5um
Rated feed rate	30m/min	Overall dimension	14000*4000x2400mm
Cutting length	300-3500mm	Weight	5500Kg

Accessories

Components	Brand
PLC	SCHNEIDER (FRANCE)
Servo motor and driver	SCHNEIDER (FRANCE)
Electric spindle motor	GMT(CHINA)
Electric button and switcher	SCHNEIDER (FRANCE)
Electric components	SCHNEIDER (FRANCE)
Approach switch	CONTRINEX(SWITZERLAND)
Limit switch	SCHNEIDER (FRANCE)
Hall Switch
Linear guide rail	PHI (TAIWAN)
Ball screw	ABBA(Taiwan)
Solenoid valve	FTG
Cylinder	EASUN(ITALY)
Diamond blades	WAGEN(JAPAN)
Air pressure gauge and filter	Schneider (FRANCE)
Gas pipe	ASHUN（TAIWAN）
Monitor	PHILIPS(Netherlands)
