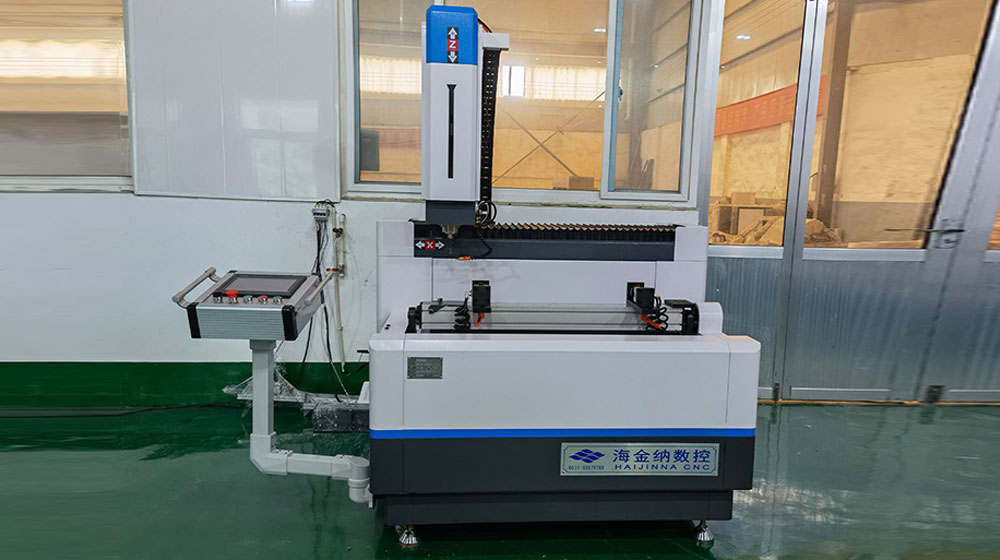

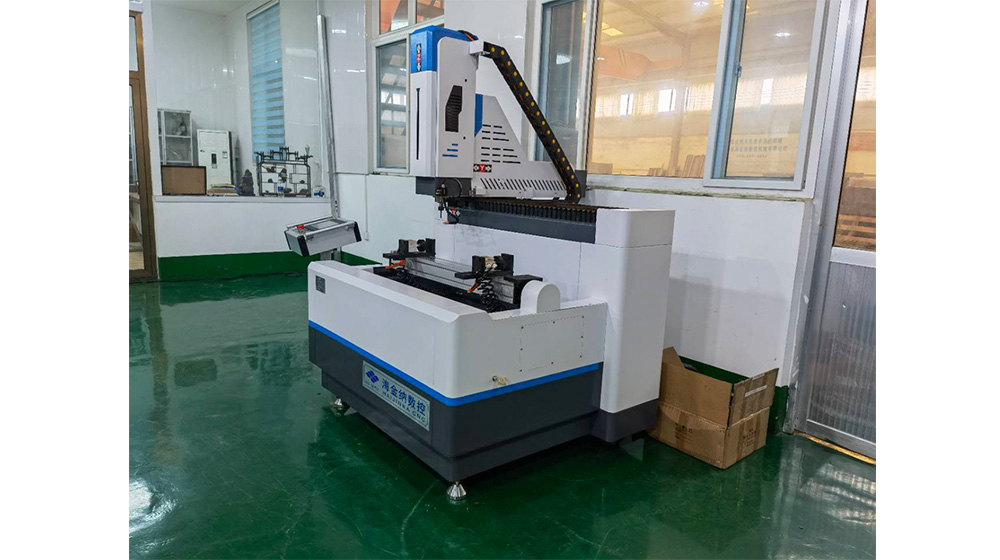

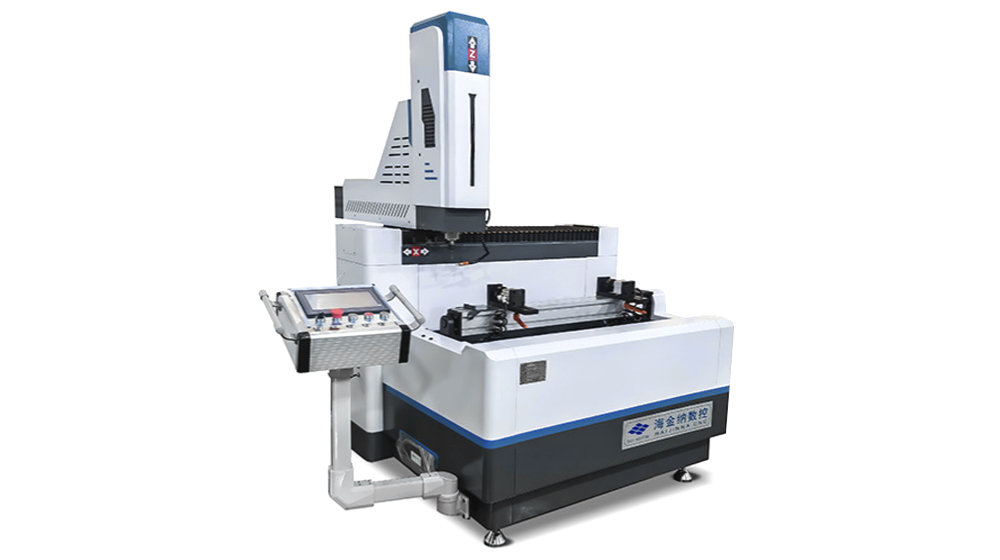

LZX-800 3 axis CNC copy router

LZX-800 is a 3-axis CNC copy router which is used for automatic processing of lock hole and slot,water drain slots and hinge holes on pvc and aluminum windows and doors.

Standard Features Technical Parameters Accessories Video

Standard Features

Applicable material:pvc,aluminum profile
X,Y,Z three axis with servo-feed,fully automatic processing.
Programming is easy,graphics library for selecting the appropriate hole type and setting the size.
Equipped with hand-operated pulse generator.

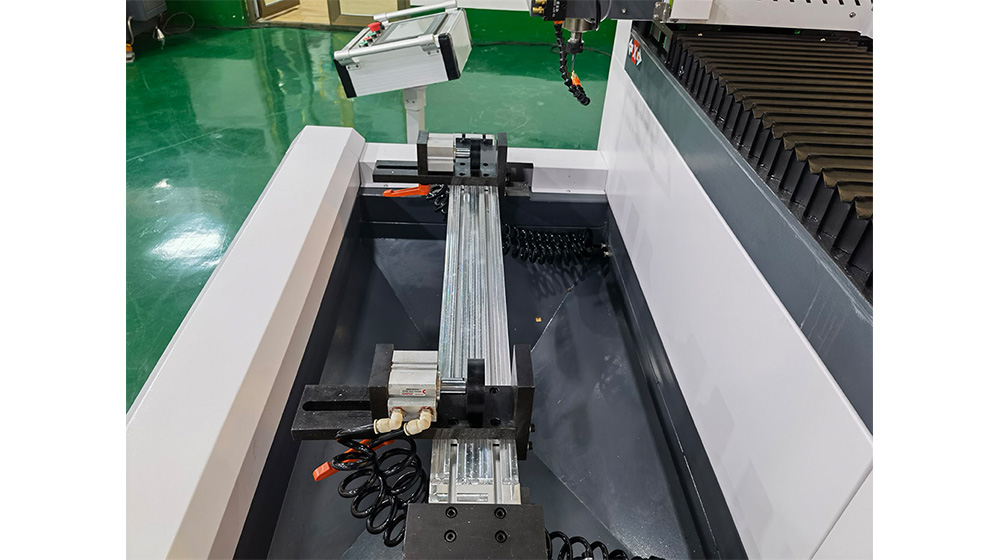

The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.
Automatic coolant spraying.

Technical Parameters

Model	LZX-800
Power supply	380v/50hz
Air pressure	0.5-0.8mpa
Total power	5.75kw
Spindle motor power	3.5kw
Servo motor power	3*750w
Rotation speed	18000r/min
X-axis stroke	800mm
Y-axis stroke	300mm
Z-axis stroke	280mm
Processing range	100*120mm
X-axis feed rate	0-60m/min
Y,Z-axis feed tate	0-15m/min
Collet	ER20
Dimension	160015001950mm
Weight	610Kg

Accessories

Items	Brand
Electric components	SCHNEIDER(FRANCE)
CNC system	QINGLAN(CHINA)
Spindle motor	FATRLE(CHINA)
Servo motor and driver	RAUNEN(CHINA)
Solenoid valve	FTG
Ball screw	TBI(TAIWAN)
Linear guide	PMI(TAIWAN)
Air cylinder	BESTEN(CHINA)
Air pipe	ASHUN(TAIWAN)

Video

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
