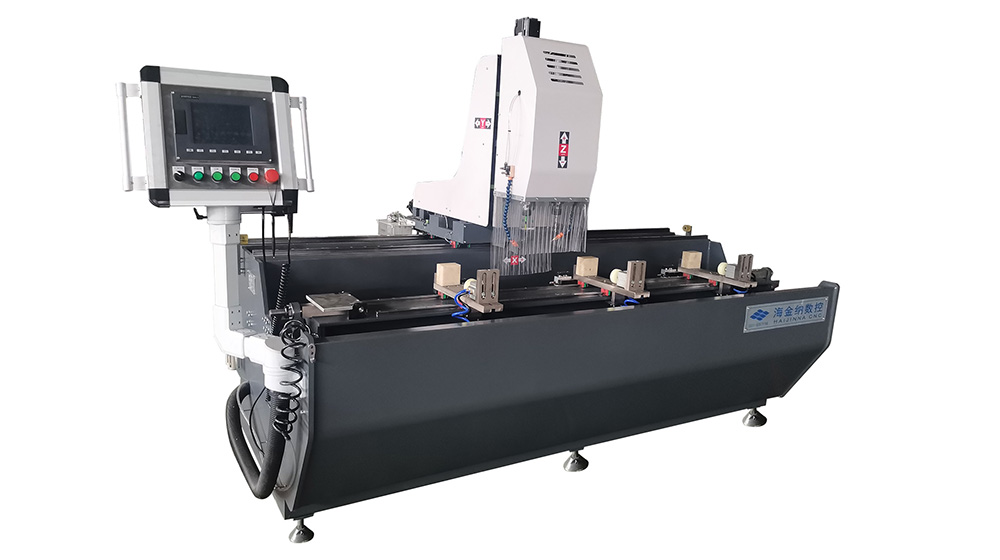

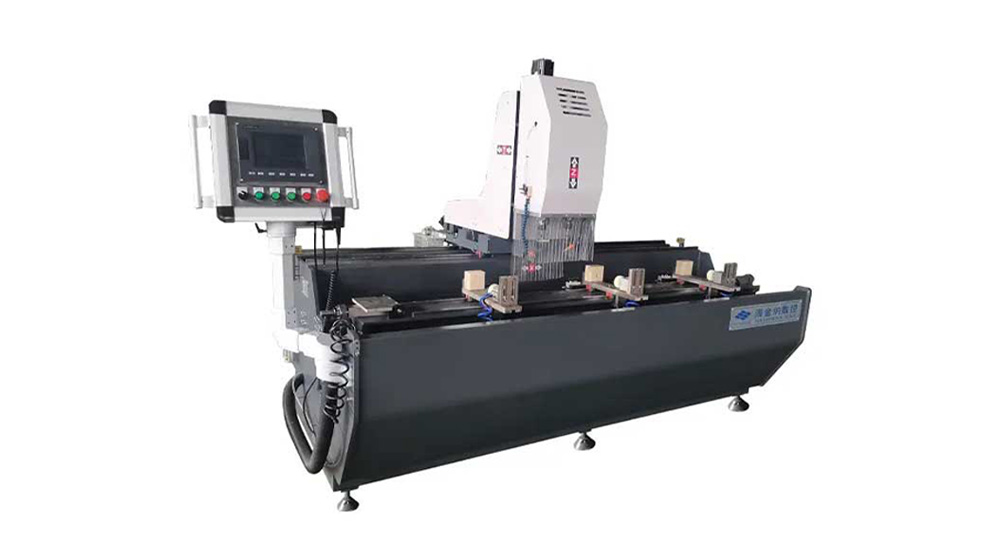

LZX-3000D 3-axis cnc copy router with dual spindle

LZX-3000D is a 3-axis cnc copy router with dual spindle,It’s used for cnc drilling and milling,as well as routing of lock hole and slot,water drain slots and hinge holes on aluminum windows and doors.

Standard Features Technical Parameters Accessories Video

Standard Features

Applicable material:pvc,aluminum profile.
Two programming methods: graphics and G-code.

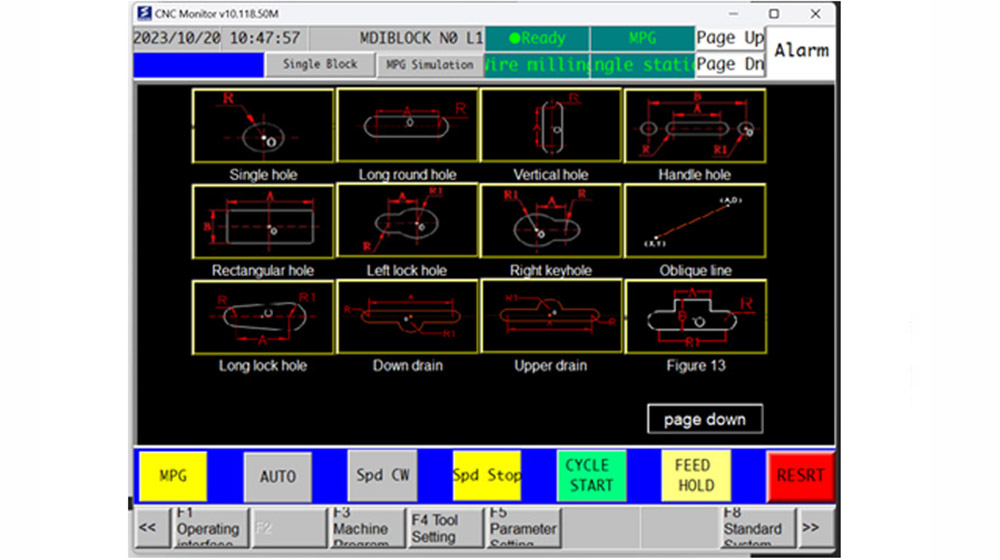

Abundant graphics library for door and window processing options.

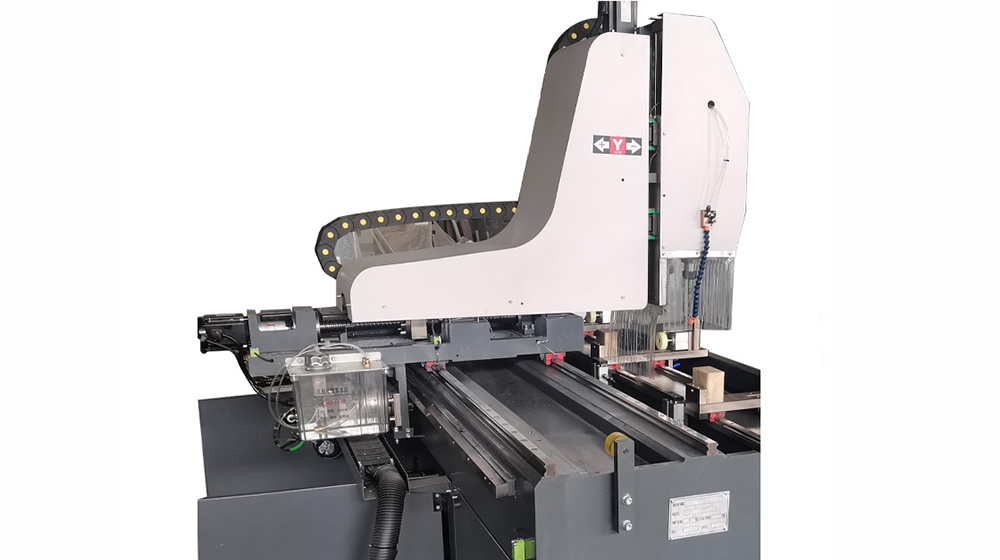

X,Y,Z three axis with servo-feed,fully automatic processing.

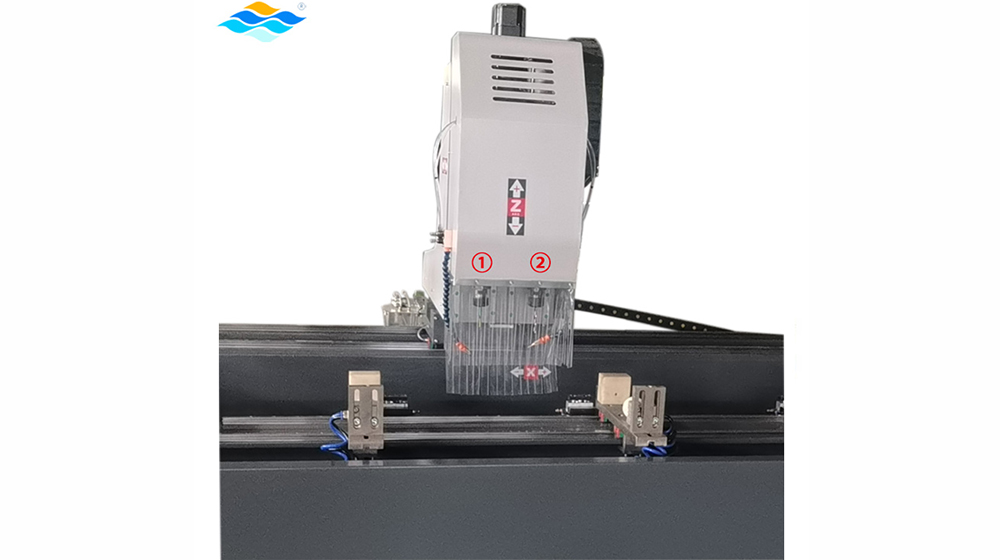

Equipped with dual spindle for saving time on manual tool changes.
Equipped with hand-operated pulse generator.
The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing.
Automatic coolant spraying.
Automatic lubrication.
Pneumatic tilted X0 stopper.

Technical Parameters

Model	LZX-3000D
Power supply	380v/50hz
Air pressure	0.5-0.8mpa
Spindle motor power	3.7kw+3.7kw
Servo motor power	3*750w
Rated rotation rate	12000rpm
Max. rotation rate	18000rpm
X-axis stroke	3000mm
Y-axis stroke	300mm
Z-axis stroke	280mm
Processing range	160*160mm
X-axis feed rate	0-60m/min
Y,Z-axis feed tate	0-20m/min
Collet	ER25
Dimension	390017002100mm
Weight	1500Kg

Accessories

Items	Brand

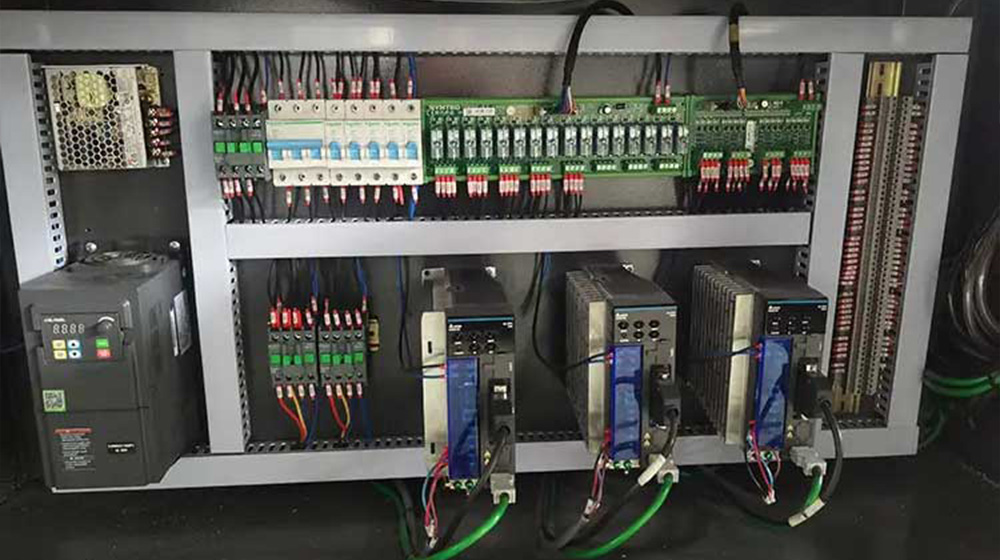

CNC controller
Electric spindle

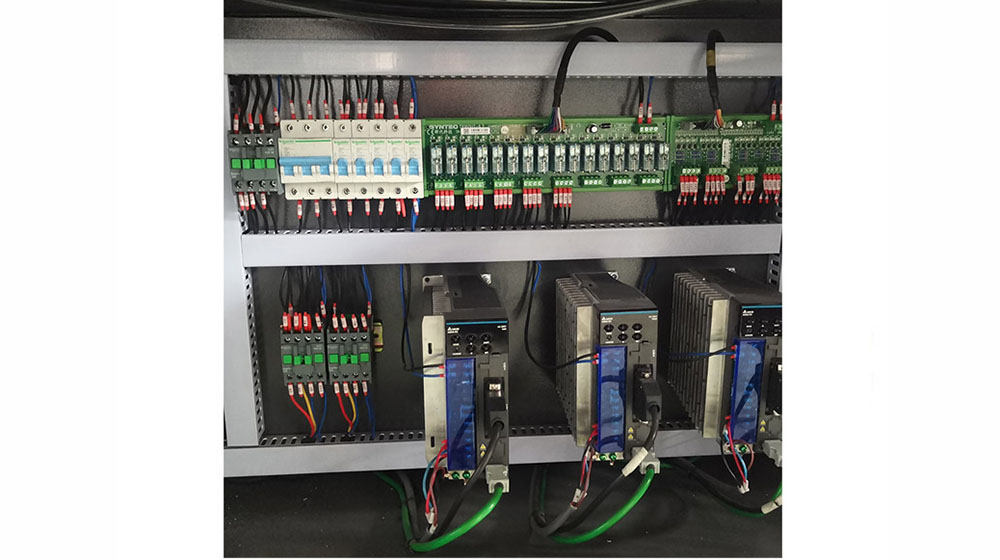

Servo motor and driver
Frequency converter
Electric components
Solenoid valve
Limit switch
Linear guide rail
Ball screw, linear guide

Video

Related Products

QUESTIONS & ANSWERS

Have some questions?

If something is missing or you can’t find the answer for your question – you can always drop us a letter with all your questions.

1Are you factory or trading company?+

We are a factory with more than 10 years experience in manufacturing door and window equipment.
2What kind of payment methods do you have?+

We support T/T and L/C payment.
3Do you have customized service?+

Yes, we can do customized order.
4How about shipping time and method ?+

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5How long is the service life and warranty ?+

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6How to install and use the machine after arrival?+

Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7How to do the maintenance for machine?+

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
