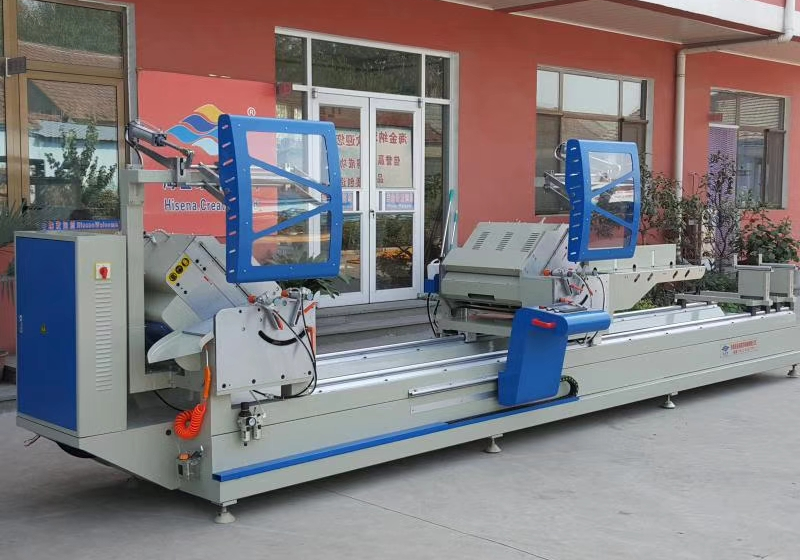

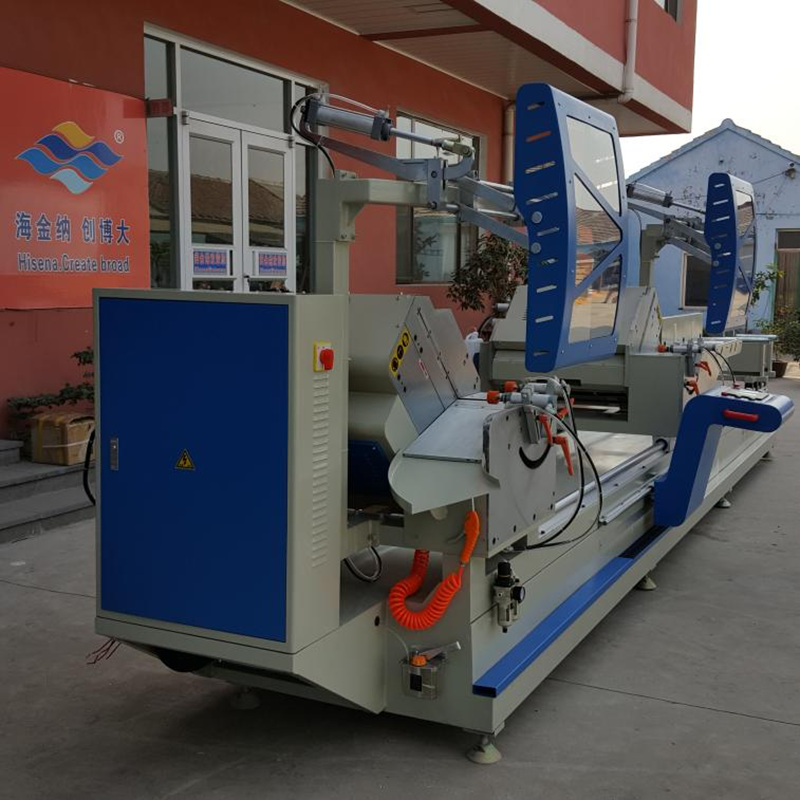

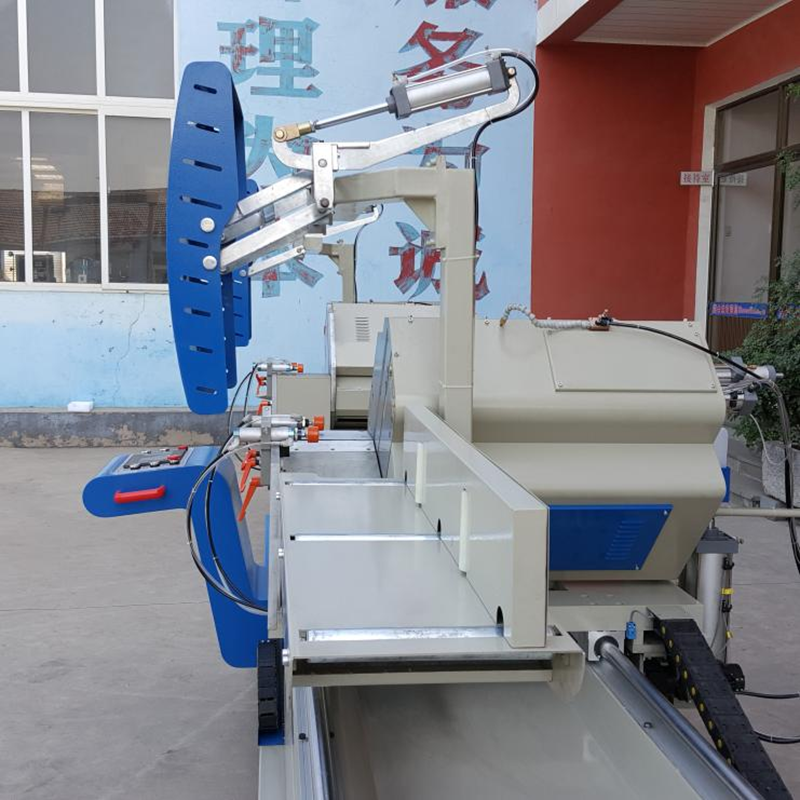

LJB2A-600×5000 Aluminum CNC ultra-wide double-head precision cutting machine introduction
Features:
* Suitable for cutting aluminum curtain wall profiles, window door profiles and PVC profiles.
*Feeding system adopts imported linear guide sub, high precision and good stability.
*The right head movement adopts high guiding ball screw movement, with high transmission accuracy, accurate positioning and stable work.
*The two saw heads can automatically convert the angle to achieve 45° flip inside and outside and 90° profile angle cutting.
*Hard alloy saw blade, with high processing precision and durability.
*Imported linear bearing with stable working precision.
*High precision spindle, saw blade rotation is stable.
*Pneumatic-hydraulic damping cylinder realizes even speed regulation for feed and smooth movement.
*Automatic opening and closing guard makes the work safe and convenient.
Parameters
Motor power: 4.4KW
Overall dimension: 6300mm×1700mm×1900mm
Weight: 2000KG
Maximum sawing diameter: 200mm
Cutting seam width: 6mm
Control form: CNC
HISENA CNC machinery based on original equipment to do continuous innovation, improvement, more adaptable to the market development needs. Choosing HISENA is to choose the market, choose the reassurance, choose the guarantee. HISENA sincerely invites people from all walks of life in the same industry to run together towards the common goal and achieve a better future!
